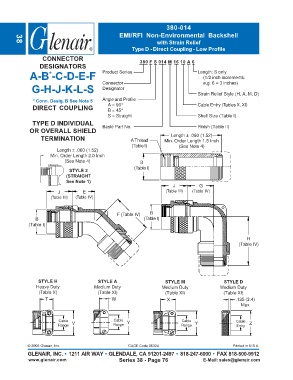

Page 212 - Circular Connector Backshells and Accessories

380-014
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Direct Coupling - Low Profile
CONNECTOR 380 F S 014 M 16 10 A 6
DESIGNATORS
A-B -C-D-E-F Product Series Length: S only
*
(1/2 inch increments:
Connector e.g. 6 = 3 inches)
G-H-J-K-L-S Designator
Strain Relief Style (H, A, M, D)
* Conn. Desig. B See Note 5 Angle and Profile
DIRECT COUPLING A = 90° Cable Entry (Tables X, XI)
B = 45°
S = Straight Shell Size (Table I)
TYPE D INDIVIDUAL
OR OVERALL SHIELD Basic Part No. Finish (Table II)
Length ± .060 (1.52)
TERMINATION A Thread Min. Order Length 1.5 Inch
(Table I) (See Note 4)
Length ± .060 (1.52)
Min. Order Length 2.0 Inch
(See Note 4) B
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
J G
J E (Table III) (Table IV)
(Table III) (Table IV)

F (Table IV) B
B (Table I)
(Table I)

H
(Table IV)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Cable Cable
Range V Range Y Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 76 E-Mail: sales@glenair.com
