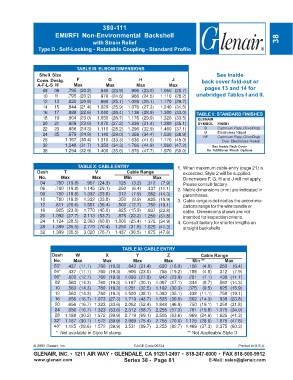

P. 217

380-111
                        EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                 Type D - Self-Locking - Rotatable Coupling - Standard Profile



                                 TABLE III: ELBOW DIMENSIONS
                 Shell Size                                                                 See inside
                Conn. Desig.     F            G            H             J           back cover fold-out or
                 A-F-L-S H      Max          Max          Max           Max
                   08   09   .795 (20.2)   .940 (23.9)  .906 (23.0)  1.050 (26.7)      pages 13 and 14 for
                   10   11   .795 (20.2)   .970 (24.6)  .966 (24.5)  1.110 (28.2)  unabridged Tables I and II.
                   12   13   .820 (20.8)   .990 (25.1)  1.026 (26.1)  1.170 (29.7)
                   14   15   .844 (21.4)  1.020 (25.9)  1.076 (27.3)  1.240 (31.5)
                   16   17   .888 (22.6)  1.040 (26.4)  1.136 (28.9)  1.300 (33.0)  TABLE II: STANDARD FINISHES
                   18   19   .904 (23.0)  1.050 (26.7)  1.176 (29.9)  1.320 (33.5)  GLENAIR
                   20   21   .929 (23.6)  1.070 (27.2)  1.236 (31.4)  1.380 (35.1)  SYMBOL  FINISH
                   22   23   .956 (24.3)  1.110 (28.2)  1.296 (32.9)  1.460 (37.1)    B     Cadmium Plate, Olive Drab
                   24   25   .979 (24.9)  1.140 (29.0)  1.356 (34.4)  1.530 (38.9)    M     Electroless Nickel
                                                                                      NF    Cadmium Plate, Olive Drab
                   28       1.197 (30.4)  1.310 (33.3)  1.636 (41.6)  1.770 (45.0)              Over Electroless Nickel
                   32       1.248 (31.7)  1.350 (34.3)  1.766 (44.9)  1.860 (47.2)        See Inside Back Cover
                   36       1.294 (32.9)  1.400 (35.6)  1.876 (47.7)  1.970 (50.0)      for Additional Finish Options


                                  TABLE X: CABLE ENTRY                     1. When maximum cable entry (page 21) is
                 Dash       T            V            Cable Range             exceeded, Style 2 will be supplied.
                 No.       Max          Max          Min         Max          Dimensions F, G, H and J will not apply.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)    Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated in
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)   parentheses.
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accommo-
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)   dations range for the wire bundle or
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)   cable.  Dimensions shown are not
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   intended for inspection criteria.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)  4. Consult factory for shorter lengths on
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  straight backshells.
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)


                                                    TABLE XI: CABLE ENTRY
                       Dash      W           X            Y            Z             Cable Range
                       No.      Max         Max          Max          Max        Min **        Max
                        03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                        04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                        06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                        32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                        40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                        *  Not available in Style M clamp.                                                    ** Not Applicable Style D


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 81               E-Mail: sales@glenair.com
