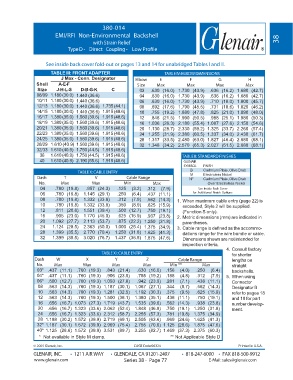

Page 213 - Circular Connector Backshells and Accessories

380-014
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type D - Direct Coupling - Low Prole

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .630 (16.0) 1.730 (43.9) .636 (16.2) 1.680 (42.7)
08/09 1.180 (30.0) 1.440 (36.6) 04 .630 (16.0) 1.730 (43.9) .636 (16.2) 1.680 (42.7)
10/11 1.180 (30.0) 1.440 (36.6) 06 .630 (16.0) 1.730 (43.9) .710 (18.0) 1.800 (45.7)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) 08 .692 (17.6) 1.790 (45.5) .731 (18.6) 1.820 (46.2)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 10 .755 (19.2) 1.880 (47.8) .825 (21.0) 1.890 (48.0)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .848 (21.5) 1.990 (50.5) .988 (25.1) 1.980 (50.3)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 1.036 (26.3) 2.180 (55.4) 1.087 (27.6) 2.150 (54.6)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 20 1.130 (28.7) 2.330 (59.2) 1.325 (33.7) 2.260 (57.4)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 24 1.255 (31.9) 2.380 (60.5) 1.337 (34.0) 2.430 (61.7)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 28 1.317 (33.5) 2.480 (63.0) 1.827 (46.4) 2.680 (68.1)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 32 1.348 (34.2) 2.570 (65.3) 2.027 (51.5) 2.680 (68.1)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) TABLE II: STANDARD FINISHES
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) GLENAIR
SYMBOL FINISH
TABLE X: CABLE ENTRY B Cadmium Plate, Olive Drab
M
Dash T V Cable Range NF Electroless Nickel
Cadmium Plate, Olive Drab
No. Max Max Min Max Over Electroless Nickel
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) See Inside Back Cover
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) for Additional Finish Options
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) 1. When maximum cable entry (page 22) is
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) exceeded, Style 2 will be supplied.
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) (Function S only).
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 2. Metric dimensions (mm) are indicated in
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) parentheses.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 3. Cable range is defined as the accommo-
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) dations range for the wire bundle or cable.
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) Dimensions shown are not intended for
inspection criteria.
4. Consult factory
TABLE XI: CABLE ENTRY for shorter
Dash W X Y Z Cable Range lengths on
No. Max Max Max Max Min ** Max straight
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4) backshells.
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9) 5. When using
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1) Connector
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3) Designator B
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9) refer to pages 18
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1) and 19 for part
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8) number develop-
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8) ment.
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
