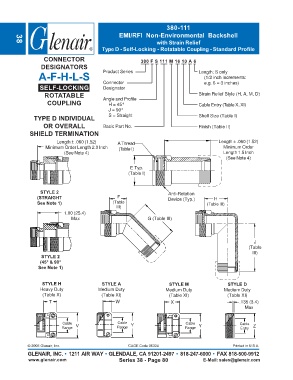

Page 216 - Circular Connector Backshells and Accessories

380-111
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Self-Locking - Rotatable Coupling - Standard Profile
CONNECTOR 380 F S 111 M 16 10 A 6
DESIGNATORS
A-F-H-L-S Product Series Length: S only
(1/2 inch increments:
Connector e.g. 6 = 3 inches)
SELF-LOCKING Designator
ROTATABLE Strain Relief Style (H, A, M, D)
COUPLING Angle and Profile Cable Entry (Table X, XI)
H = 45°
J = 90°
TYPE D INDIVIDUAL S = Straight Shell Size (Table I)
OR OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION
Length ± .060 (1.52) A Thread Length ± .060 (1.52)
Minimum Order Length 2.0 Inch Minimum Order
(Table I)
(See Note 4) Length 1.5 Inch
(See Note 4)
E Typ.
(Table I)

STYLE 2 Anti-Rotation
(STRAIGHT F Device (Typ.) H
See Note 1) (Table (Table III)
III)
1.00 (25.4)
Max G (Table III)

J
(Table
III)
STYLE 2
(45° & 90°
See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Cable Cable
Range V Range Y Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 80 E-Mail: sales@glenair.com
