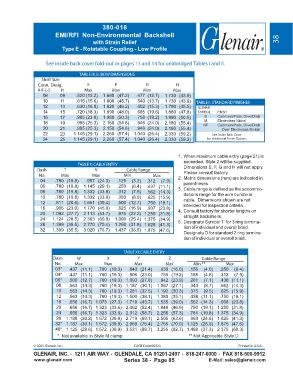

Page 221 - Circular Connector Backshells and Accessories

380-018
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type E - Rotatable Coupling - Low Profile

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .520 (13.2) 1.680 (47.2) .477 (12.7) 1.730 (43.9)
10 11 .615 (15.6) 1.800 (45.7) .540 (13.7) 1.730 (43.9) TABLE II: STANDARD FINISHES
12 13 .630 (16.0) 1.820 (46.2) .602 (15.3) 1.790 (45.5) GLENAIR
14 15 .720 (18.3) 1.890 (48.0) .665 (19.6) 1.880 (47.8) SYMBOL FINISH
16 17 .905 (23.0) 1.980 (50.3) .758 (19.2) 1.990 (50.5) B Cadmium Plate, Olive Drab
M
18 19 .995 (25.3) 2.150 (54.6) .946 (24.0) 2.180 (55.4) NF Electroless Nickel
Cadmium Plate, Olive Drab
20 21 .995 (25.3) 2.150 (54.6) .946 (24.0) 2.180 (55.4) Over Electroless Nickel
22 23 1.145 (29.1) 2.260 (57.4) 1.040 (26.4) 2.330 (59.2) See Inside Back Cover
24 25 1.145 (29.1) 2.260 (57.4) 1.040 (26.4) 2.330 (59.2) for Additional Finish Options

1. When maximum cable entry (page 21) is
exceeded, Style 2 will be supplied.
TABLE X: CABLE ENTRY
Dash T V Cable Range Dimensions E, F, G and H will not apply.
Please consult factory.
No. Max Max Min Max 2. Metric dimensions (mm) are indicated in
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9)
parentheses.
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) 3. Cable range is defined as the accommo-
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3)
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) dations range for the wire bundle or
cable. Dimensions shown are not
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) intended for inspection criteria.
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) 4. Consult factory for shorter lengths on
straight backshells.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 5. Designate Symbol T for 3 ring termina-
tion of individual and overall braid.
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
Designate D for standard 2 ring termina-
tion of individual or overall braid.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 85 E-Mail: sales@glenair.com
