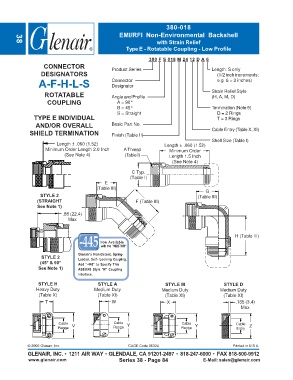

380-018
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type E - Rotatable Coupling - Low Profile

380 F S 018 M 24 12 D A 6
CONNECTOR
DESIGNATORS Product Series Length: S only
(1/2 inch increments:
A-F-H-L-S Connector e.g. 6 = 3 inches)
Designator
ROTATABLE Angle and Profile Strain Relief Style
(H, A, M, D)
COUPLING A = 90°
B = 45° Termination (Note 5)
S = Straight D = 2 Rings
TYPE E INDIVIDUAL T = 3 Rings
AND/OR OVERALL Basic Part No.
SHIELD TERMINATION Finish (Table II) Cable Entry (Table X, XI)
Shell Size (Table I)
Length ± .060 (1.52) Length ± .060 (1.52)
Minimum Order Length 2.0 Inch A Thread Minimum Order
(See Note 4) (Table I) Length 1.5 Inch
(See Note 4)
C Typ.
(Table I)
E
(Table III)
G
STYLE 2 (Table III)
(STRAIGHT F (Table III)
See Note 1)
.88 (22.4)
Max

H (Table III)
Now Available
with the “NESTOR”
Glenair’s Non-Detent, Spring-
STYLE 2 Loaded, Self- Locking Coupling.
(45° & 90° Add “-445” to Specify This
See Note 1) AS85049 Style “N” Coupling
Interface.
STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Y Cable Cable
Range V Range Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 84 E-Mail: sales@glenair.com
