380-111

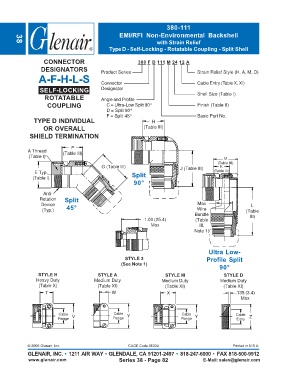

EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Self-Locking - Rotatable Coupling - Split Shell

CONNECTOR 380 F D 111 M 24 12 A
DESIGNATORS Product Series Strain Relief Style (H, A, M, D)
A-F-H-L-S Connector Cable Entry (Table X, XI)

SELF-LOCKING Designator
ROTATABLE Angle and Profile Shell Size (Table I)
COUPLING C = Ultra-Low Split 90° Finish (Table II)
D = Split 90°
F = Split 45° Basic Part No.
TYPE D INDIVIDUAL H
OR OVERALL (Table III)
SHIELD TERMINATION

F
A Thread (Table III)
(Table I)
M
(Table III)
G (Table III) J (Table III) K
E Typ. Split (Table III)
(Table I)
90°

Anti-
Rotation Split
Device 45° Max L
(Typ.) Wire (Table
Bundle III)
1.00 (25.4) (Table
Max III,
Note 1)

Ultra Low-
STYLE 2 Profile Split
(See Note 1)
90°
STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Cable Cable
Range V Range Y Range Y Entry Z
