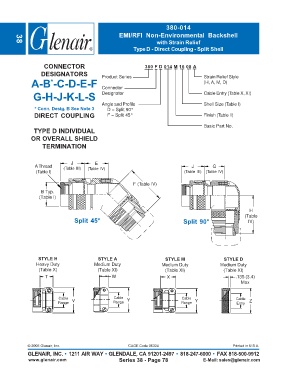

380-014
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Direct Coupling - Split Shell

CONNECTOR 380 F D 014 M 16 08 A
DESIGNATORS Product Series Strain Relief Style
A-B -C-D-E-F Connector (H, A, M, D)
*

G-H-J-K-L-S Designator Cable Entry (Table X, XI)

Angle and Profile Shell Size (Table I)
* Conn. Desig. B See Note 3 D = Split 90°
DIRECT COUPLING F = Split 45° Finish (Table II)

Basic Part No.
TYPE D INDIVIDUAL
OR OVERALL SHIELD
TERMINATION

J E
A Thread (Table III) (Table IV) J G
(Table I) (Table III) (Table IV)

F (Table IV)
B Typ.
(Table I)

H
(Table
Split 45° Split 90° IV)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Cable Cable
Range V Range Y Range Y Entry Z
