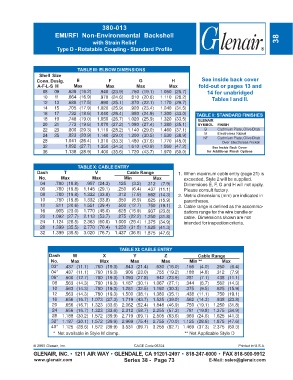

Page 209 - Circular Connector Backshells and Accessories
P. 209

380-013
                        EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                         Type D - Rotatable Coupling - Standard Profile




                                 TABLE III: ELBOW DIMENSIONS
                 Shell Size
                Conn. Desig.     E            F            G             H           See inside back cover
                 A-F-L-S H      Max          Max          Max           Max         fold-out or pages 13 and
                   08   09   .639 (16.2)   .940 (23.9)  .750 (19.1)  1.050 (26.7)       14 for unabridged
                   10   11   .664 (16.9)   .970 (24.6)  .810 (20.6)  1.110 (28.2)         Tables I and II.
                   12   13   .688 (17.5)   .990 (25.1)  .870 (22.1)  1.170 (29.7)
                   14   15   .705 (17.9)  1.020 (25.9)  .920 (23.4)  1.240 (31.5)
                   16   17   .732 (18.6)  1.040 (26.4)  .980 (24.9)  1.300 (33.0)  TABLE II: STANDARD FINISHES
                   18   19   .748 (19.0)  1.050 (26.7)  1.020 (25.9)  1.320 (33.5)  GLENAIR
                   20   21   .773 (19.6)  1.070 (27.2)  1.080 (27.4)  1.380 (35.1)  SYMBOL  FINISH
                   22   23   .800 (20.3)  1.110 (28.2)  1.140 (29.0)  1.460 (37.1)    B     Cadmium Plate, Olive Drab
                   24   25   .823 (20.9)  1.140 (29.0)  1.200 (30.5)  1.530 (38.9)    M     Electroless Nickel
                                                                                      NF    Cadmium Plate, Olive Drab
                   28       1.041 (26.4)  1.310 (33.3)  1.480 (37.6)  1.770 (45.0)              Over Electroless Nickel
                   32       1.092 (27.7)  1.350 (34.3)  1.610 (40.9)  1.860 (47.2)        See Inside Back Cover
                   36       1.138 (28.9)  1.400 (35.6)  1.720 (43.7)  1.970 (50.0)      for Additional Finish Options


                                  TABLE X: CABLE ENTRY
                 Dash       T            V            Cable Range           1. When maximum cable entry (page 21) is
                 No.       Max          Max          Min         Max          exceeded, Style 2 will be supplied.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)    Dimensions E, F, G and H will not apply.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)   Please consult factory.
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)  2. Metric dimensions (mm) are indicated in
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)   parentheses.
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)  3. Cable range is defined as the accommo-
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)   dations range for the wire bundle or
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   cable.  Dimensions shown are not
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)  intended for inspection criteria.
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)


                                                   TABLE XI: CABLE ENTRY
                      Dash     W            X            Y            Z             Cable Range
                      No.      Max         Max          Max          Max        Min **        Max
                      03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                      04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                      06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                       08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                       10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                       12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                       16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                       20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                       24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                       28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                      32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                      40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                       *  Not available in Style M clamp.                                                    ** Not Applicable Style D


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 73               E-Mail: sales@glenair.com
