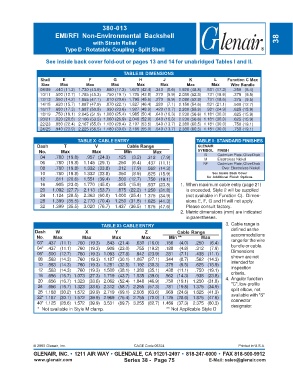

Page 211 - Circular Connector Backshells and Accessories

380-013
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type D - Rotatable Coupling - Split Shell

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: DIMENSIONS
Shell E F G H J K L Function C Max
Size Max Max Max Max Max Max Max Wire Bundle
08/09 .440 (11.2) 1.730 (43.9) .680 (17.3) 1.670 (42.4) .340 (8.6) 1.920 (48.8) .681 (17.3) .250 (6.4)
10/11 .500 (12.7) 1.785 (45.3) .750 (19.1) 1.725 (43.8) .270 (6.9) 2.080 (52.8) .731 (18.6) .375 (9.5)
12/13 .560 (14.2) 1.855 (47.1) .810 (20.6) 1.795 (45.6) .270 (6.9) 2.080 (52.8) .731 (18.6) .375 (9.5)
14/15 .620 (15.7) 1.887 (47.9) .870 (22.1) 1.827 (46.4) .280 (7.1) 2.150 (54.6) .831 (21.1) .500 (12.7)
16/17 .680 (17.3) 1.987 (50.5) .930 (23.6) 1.927 (48.9) .420 (10.7) 2.200 (55.9) .981 (24.9) .625 (15.9)
18/19 .750 (19.1) 2.045 (51.9) 1.000 (25.4) 1.985 (50.4) .640 (16.3) 2.230 (56.6) 1.181 (30.0) .625 (15.9)
20/21 .820 (20.8) 2.106 (53.5) 1.060 (26.9) 2.046 (52.0) .640 (16.3) 2.230 (56.6) 1.181 (30.0) .625 (15.9)
22/23 .880 (22.4) 2.167 (55.0) 1.120 (28.4) 2.107 (53.5) .540 (13.7) 2.380 (60.5) 1.181 (30.0) .750 (19.1)
24/25 .940 (23.9) 2.225 (56.5) 1.180 (30.0) 2.165 (55.0) .540 (13.7) 2.380 (60.5) 1.181 (30.0) .750 (19.1)

TABLE X: CABLE ENTRY TABLE II: STANDARD FINISHES
Dash T V Cable Range GLENAIR
No. Max Max Min Max SYMBOL FINISH
B Cadmium Plate, Olive Drab
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9)
M Electroless Nickel
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) NF Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) Over Electroless Nickel
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) See Inside Back Cover
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) for Additional Finish Options
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 1. When maximum cable entry (page 21)
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) is exceeded, Style 2 will be supplied
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) (not available in Function C). Dimen-
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) sions E, F, G and H will not apply.
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) Please consult factory.
2. Metric dimensions (mm) are indicated
in parentheses.
TABLE XI: CABLE ENTRY 3. Cable range is
Dash W X Y Z Cable Range defined as the
No. Max Max Max Max Min ** Max accommodations
range for the wire
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
bundle or cable.
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1) Dimensions
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3) shown are not
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9) intended for
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1) inspection
criteria.
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8) 4. Angular function
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9) "C", low-profile
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3) split elbow, not
available with "S"
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
connector
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
designator.
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
