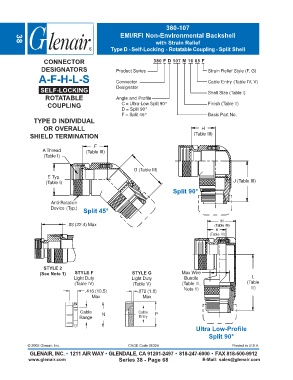

380-107
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Self-Locking - Rotatable Coupling - Split Shell

CONNECTOR 380 F D 107 M 16 05 F
DESIGNATORS Product Series Strain Relief Style (F, G)
A-F-H-L-S Connector Cable Entry (Table IV, V)

SELF-LOCKING Designator Shell Size (Table I)
ROTATABLE Angle and Profile
COUPLING C = Ultra-Low Split 90° Finish (Table II)
D = Split 90°
F = Split 45° Basic Part No.
TYPE D INDIVIDUAL
OR OVERALL H
SHIELD TERMINATION (Table III)

F
A Thread (Table III)
(Table I)

G (Table III)
E Typ.
J (Table III)
(Table I)
Split 90°

Anti-Rotation
Device (Typ.)
Split 45°
M
.88 (22.4) Max (Table III)
K
(Table III)

STYLE 2
(See Note 1) STYLE F STYLE G Max Wire
Light Duty Light Duty Bundle L
(Table IV) (Table V) (Table III, (Table
Note 1) III)
.416 (10.5) .072 (1.8)
Max Max

Cable Cable
N P
Range Entry
Ultra Low-Profile
Split 90°

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
