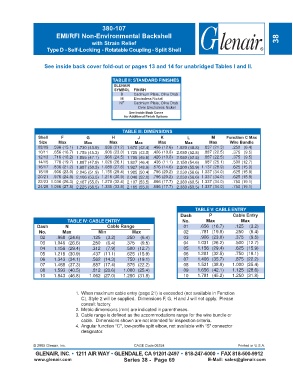

380-107
                         EMI/RFI Non-Environmental Backshell                                                         38
                                       with Strain Relief
                     Type D - Self-Locking - Rotatable Coupling - Split Shell


                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.


                                                TABLE II: STANDARD FINISHES
                                                 GLENAIR
                                                 SYMBOL  FINISH
                                                   B     Cadmium Plate, Olive Drab
                                                   M     Electroless Nickel
                                                   NF    Cadmium Plate, Olive Drab
                                                             Over Electroless Nickel
                                                       See Inside Back Cover
                                                     for Additional Finish Options


                                                    TABLE III: DIMENSIONS
                 Shell     F         G          H          J        K          L         M      Function C Max
                 Size    Max        Max        Max       Max       Max        Max       Max      Wire Bundle
                 08/09  .596 (15.1) 1.730 (43.9)  .836 (21.2) 1.670 (42.4)  .496 (12.6) 1.920 (48.8)  .837 (21.3)  .250 (6.4)
                 10/11  .656 (16.7) 1.785 (45.3)  .906 (23.0) 1.725 (43.8)  .426 (10.8) 2.080 (52.8)  .887 (22.5)  .375 (9.5)
                 12/13  .716 (18.2) 1.855 (47.1)  .966 (24.5) 1.795 (45.6)  .426 (10.8) 2.080 (52.8)  .887 (22.5)  .375 (9.5)
                 14/15  .776 (19.7) 1.887 (47.9)  1.026 (26.1) 1.827 (46.4)  .436 (11.1) 2.150 (54.6)  .987 (25.1)  .500 (12.7)
                 16/17  .836 (21.2) 1.987 (50.5)  1.086 (27.6) 1.927 (48.9)  .576 (14.6) 2.200 (55.9)  1.137 (28.9)  .625 (15.9)
                 18/19  .906 (23.0) 2.045 (51.9)  1.156 (29.4) 1.985 (50.4)  .796 (20.2) 2.230 (56.6)  1.337 (34.0)  .625 (15.9)
                 20/21  .976 (24.8) 2.106 (53.5)  1.216 (30.9) 2.046 (52.0)  .796 (20.2) 2.230 (56.6)  1.337 (34.0)  .625 (15.9)
                 22/23 1.036 (26.3) 2.167 (55.0)  1.276 (32.4) 2.107 (53.5)  .696 (17.7) 2.380 (60.5)  1.337 (34.0)  .750 (19.1)
                 24/25 1.096 (27.8) 2.225 (56.5)  1.336 (33.9) 2.165 (55.0)  .696 (17.7) 2.380 (60.5)  1.337 (34.0)  .750 (19.1)




                                                                                   TABLE V: CABLE ENTRY
                                                                            Dash        P         Cable Entry
                             TABLE IV: CABLE ENTRY                           No.       Max            Max
                 Dash       N                 Cable Range                     01     .656 (16.7)   .125  (3.2)
                 No.       Max            Min           Max                   02     .781 (19.8)   .250  (6.4)
                  02     .968 (24.6)   .125  (3.2)    .250  (6.4)             03     .906 (23.0)   .375  (9.5)
                  03    1.046 (26.6)   .250  (6.4)    .375  (9.5)             04    1.031 (26.2)   .500 (12.7)
                  04    1.156 (29.4)   .312  (7.9)    .500 (12.7)             05    1.156 (29.4)   .625 (15.9)
                  05    1.218 (30.9)   .437 (11.1)    .625 (15.9)             06    1.281 (32.5)   .750 (19.1)
                  06    1.343 (34.1)   .562 (14.3)    .750 (19.1)             07    1.406 (35.7)   .875 (22.2)
                  07    1.468 (37.3)   .687 (17.4)    .875 (22.2)             08    1.531 (38.9)  1.000 (25.4)
                  08    1.593 (40.5)   .812 (20.6)   1.000 (25.4)             09    1.656 (42.1)  1.125 (28.6)
                  10    1.843 (46.8)  1.062 (27.0)   1.250 (31.8)             10    1.781 (45.2)  1.250 (31.8)



                                 1. When maximum cable entry (page 21) is exceeded (not available in Function
                                   C), Style 2 will be supplied.  Dimensions F, G, H and J will not apply.  Please
                                   consult factory.
                                 2. Metric dimensions (mm) are indicated in parentheses.
                                 3. Cable range is defined as the accommodations range for the wire bundle or
                                   cable.  Dimensions shown are not intended for inspection criteria.
                                 4. Angular function "C", low-profile split elbow, not available with "S" connector
                                   designator.


               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 69               E-Mail: sales@glenair.com
