Page 203 - Circular Connector Backshells and Accessories

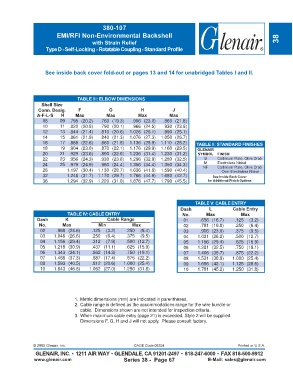

P. 203
380-107
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type D - Self-Locking - Rotatable Coupling - Standard Profile
See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. F G H J
A-F-L-S H Max Max Max Max
08 09 .795 (20.2) .760 (19.3) .906 (23.0) .860 (21.8)
10 11 .820 (20.8) .790 (20.1) .966 (24.5) .930 (23.6)
12 13 .844 (21.4) .810 (20.6) 1.026 (26.1) .990 (25.1)
14 15 .861 (21.9) .840 (21.3) 1.076 (27.3) 1.050 (26.7)
16 17 .888 (22.6) .860 (21.8) 1.136 (28.9) 1.110 (28.2) TABLE II: STANDARD FINISHES
18 19 .904 (23.0) .870 (22.1) 1.176 (29.9) 1.160 (29.5) GLENAIR
20 21 .929 (23.6) .890 (22.6) 1.236 (31.4) 1.230 (31.2) SYMBOL FINISH
22 23 .956 (24.3) .930 (23.6) 1.296 (32.9) 1.280 (32.5) B Cadmium Plate, Olive Drab
24 25 .979 (24.9) .960 (24.4) 1.356 (34.4) 1.350 (34.3) M Electroless Nickel
NF Cadmium Plate, Olive Drab
28 1.197 (30.4) 1.130 (28.7) 1.636 (41.6) 1.590 (40.4) Over Electroless Nickel
32 1.248 (31.7) 1.170 (29.7) 1.766 (44.9) 1.680 (42.7) See Inside Back Cover
36 1.294 (32.9) 1.220 (31.0) 1.876 (47.7) 1.790 (45.5) for Additional Finish Options
TABLE V: CABLE ENTRY
Dash L Cable Entry
TABLE IV: CABLE ENTRY No. Max Max
Dash K Cable Range 01 .656 (16.7) .125 (3.2)
No. Max Min Max 02 .781 (19.8) .250 (6.4)
02 .968 (24.6) .125 (3.2) .250 (6.4) 03 .906 (23.0) .375 (9.5)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 04 1.031 (26.2) .500 (12.7)
04 1.156 (29.4) .312 (7.9) .500 (12.7) 05 1.156 (29.4) .625 (15.9)
05 1.218 (30.9) .437 (11.1) .625 (15.9) 06 1.281 (32.5) .750 (19.1)
06 1.343 (34.1) .562 (14.3) .750 (19.1) 07 1.406 (35.7) .875 (22.2)
07 1.468 (37.3) .687 (17.4) .875 (22.2) 08 1.531 (38.9) 1.000 (25.4)
08 1.593 (40.5) .812 (20.6) 1.000 (25.4) 09 1.656 (42.1) 1.125 (28.6)
10 1.843 (46.8) 1.062 (27.0) 1.250 (31.8) 10 1.781 (45.2) 1.250 (31.8)
1. Metric dimensions (mm) are indicated in parentheses.
2. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
3. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions F, G, H and J will not apply. Please consult factory.
© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 67 E-Mail: sales@glenair.com
