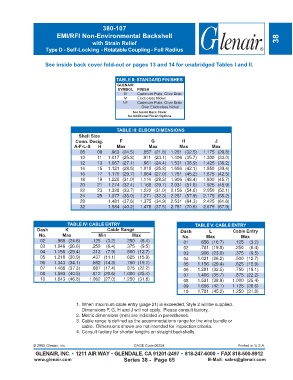

380-107
                         EMI/RFI Non-Environmental Backshell                                                         38
                                        with Strain Relief
                    Type D - Self-Locking - Rotatable Coupling - Full Radius


                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.


                                                  TABLE II: STANDARD FINISHES
                                                  GLENAIR
                                                  SYMBOL  FINISH
                                                     B    Cadmium Plate, Olive Drab
                                                     M    Electroless Nickel
                                                    NF    Cadmium Plate, Olive Drab
                                                              Over Electroless Nickel
                                                        See Inside Back Cover
                                                      for Additional Finish Options

                                                  TABLE III: ELBOW DIMENSIONS
                                  Shell Size
                                 Conn. Desig.      F            G            H             J
                                A-F-L-S   H       Max          Max          Max           Max
                                  08      09   .963 (24.5)   .857 (21.8)  1.281 (32.5)  1.175 (29.8)
                                  10      11  1.017 (25.8)   .911 (23.1)  1.406 (35.7)  1.300 (33.0)
                                  12      13  1.067 (27.1)   .961 (24.4)  1.531 (38.9)  1.425 (36.2)
                                  14      15  1.121 (28.5)  1.015 (25.8)  1.656 (42.1)  1.550 (39.4)
                                  16      17  1.170 (29.7)  1.064 (27.0)  1.781 (45.2)  1.675 (42.5)
                                  18      19  1.220 (31.0)  1.114 (28.3)  1.906 (48.4)  1.800 (45.7)
                                  20      21  1.274 (32.4)  1.168 (29.7)  2.031 (51.6)  1.925 (48.9)
                                  22      23  1.328 (33.7)  1.222 (31.0)  2.156 (54.8)  2.050 (52.1)
                                  24      25  1.377 (35.0)  1.271 (32.3)  2.281 (57.9)  2.175 (55.2)
                                  28          1.481 (37.6)  1.375 (34.9)  2.531 (64.3)  2.425 (61.6)
                                  32          1.584 (40.2)  1.478 (37.5)  2.781 (70.6)  2.675 (67.9)



                             TABLE IV: CABLE ENTRY                                 TABLE V: CABLE ENTRY
                 Dash       K                 Cable Range                   Dash        L         Cable Entry
                 No.       Max            Min           Max                  No.       Max            Max
                  02     .968 (24.6)   .125  (3.2)    .250  (6.4)             01     .656 (16.7)   .125  (3.2)
                  03    1.046 (26.6)   .250  (6.4)    .375  (9.5)
                                                                              02     .781 (19.8)   .250  (6.4)
                  04    1.156 (29.4)   .312  (7.9)    .500 (12.7)             03     .906 (23.0)   .375  (9.5)
                  05    1.218 (30.9)   .437 (11.1)    .625 (15.9)             04    1.031 (26.2)   .500 (12.7)
                  06    1.343 (34.1)   .562 (14.3)    .750 (19.1)             05    1.156 (29.4)   .625 (15.9)
                  07    1.468 (37.3)   .687 (17.4)    .875 (22.2)             06    1.281 (32.5)   .750 (19.1)
                  08    1.593 (40.5)   .812 (20.6)   1.000 (25.4)
                                                                              07    1.406 (35.7)   .875 (22.2)
                  10    1.843 (46.8)  1.062 (27.0)   1.250 (31.8)             08    1.531 (38.9)  1.000 (25.4)
                                                                              09    1.656 (42.1)  1.125 (28.6)
                                                                              10    1.781 (45.2)  1.250 (31.8)

                                 1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
                                   Dimensions F, G, H and J will not apply.  Please consult factory.
                                 2. Metric dimensions (mm) are indicated in parentheses.
                                 3. Cable range is defined as the accommodations range for the wire bundle or
                                   cable.  Dimensions shown are not intended for inspection criteria.
                                 4. Consult factory for shorter lengths on straight backshells.


               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 65               E-Mail: sales@glenair.com
