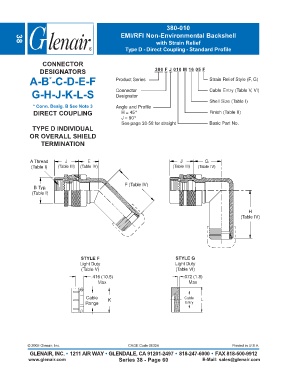

Page 196 - Circular Connector Backshells and Accessories

380-010
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Direct Coupling - Standard Profile

CONNECTOR
DESIGNATORS 380 F J 010 M 16 05 F
A-B -C-D-E-F Product Series Strain Relief Style (F, G)
*
G-H-J-K-L-S Connector Cable Entry (Table V, VI)
Designator
Shell Size (Table I)
* Conn. Desig. B See Note 3 Angle and Profile
DIRECT COUPLING H = 45° Finish (Table II)
J = 90°
See page 38-58 for straight Basic Part No.
TYPE D INDIVIDUAL
OR OVERALL SHIELD
TERMINATION

A Thread J E J G
(Table I) (Table III) (Table IV) (Table III) (Table IV)

F (Table IV)
B Typ.
(Table I)

H
(Table IV)

STYLE F STYLE G
Light Duty Light Duty
(Table V) (Table VI)
.416 (10.5) .072 (1.8)
Max Max

Cable K Cable L
Range Entry

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 60 E-Mail: sales@glenair.com
