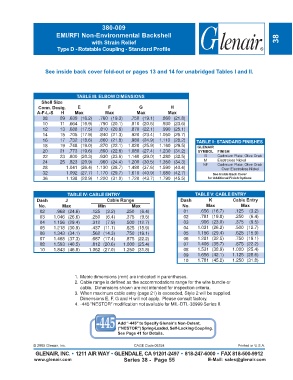

380-009
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type D - Rotatable Coupling - Standard Profile

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell Size
Conn. Desig. E F G H
A-F-L-S H Max Max Max Max
08 09 .639 (16.2) .760 (19.3) .750 (19.1) .860 (21.8)
10 11 .664 (16.9) .790 (20.1) .810 (20.6) .930 (23.6)
12 13 .688 (17.5) .810 (20.6) .870 (22.1) .990 (25.1)
14 15 .705 (17.9) .840 (21.3) .920 (23.4) 1.050 (26.7)
16 17 .732 (18.6) .860 (21.8) .980 (24.9) 1.110 (28.2) TABLE II: STANDARD FINISHES
18 19 .748 (19.0) .870 (22.1) 1.020 (25.9) 1.160 (29.5) GLENAIR
20 21 .773 (19.6) .890 (22.6) 1.080 (27.4) 1.230 (31.2) SYMBOL FINISH
22 23 .800 (20.3) .930 (23.6) 1.140 (29.0) 1.280 (32.5) B Cadmium Plate, Olive Drab
M Electroless Nickel
24 25 .823 (20.9) .960 (24.4) 1.200 (30.5) 1.350 (34.3) NF Cadmium Plate, Olive Drab
28 1.041 (26.4) 1.130 (28.7) 1.480 (37.6) 1.590 (40.4) Over Electroless Nickel
32 1.092 (27.7) 1.170 (29.7) 1.610 (40.9) 1.680 (42.7) See Inside Back Cover
36 1.138 (28.9) 1.220 (31.0) 1.720 (43.7) 1.790 (45.5) for Additional Finish Options

TABLE IV: CABLE ENTRY TABLE V: CABLE ENTRY
Dash J Cable Range Dash K Cable Entry
No. Max Min Max No. Max Max
02 .968 (24.6) .125 (3.2) .250 (6.4) 01 .656 (16.7) .125 (3.2)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 02 .781 (19.8) .250 (6.4)
04 1.156 (29.4) .312 (7.9) .500 (12.7) 03 .906 (23.0) .375 (9.5)
05 1.218 (30.9) .437 (11.1) .625 (15.9) 04 1.031 (26.2) .500 (12.7)
06 1.343 (34.1) .562 (14.3) .750 (19.1) 05 1.156 (29.4) .625 (15.9)
07 1.468 (37.3) .687 (17.4) .875 (22.2) 06 1.281 (32.5) .750 (19.1)
08 1.593 (40.5) .812 (20.6) 1.000 (25.4) 07 1.406 (35.7) .875 (22.2)
10 1.843 (46.8) 1.062 (27.0) 1.250 (31.8) 08 1.531 (38.9) 1.000 (25.4)
09 1.656 (42.1) 1.125 (28.6)
10 1.781 (45.2) 1.250 (31.8)

1. Metric dimensions (mm) are indicated in parentheses.
2. Cable range is defined as the accommodations range for the wire bundle or
cable. Dimensions shown are not intended for inspection criteria.
3. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied.
Dimensions E, F, G and H will not apply. Please consult factory.
4. -445 "NESTOR" modification not available for MIL-DTL-38999 Series II.

Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
See Page 41 for Details.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
