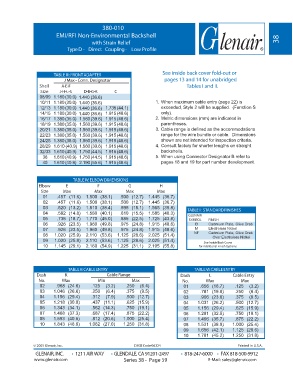

Page 195 - Circular Connector Backshells and Accessories

380-010
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type D - Direct Coupling - Low Prole

TABLE III: FRONT ADAPTER See inside back cover fold-out or
J Max - Conn. Designator pages 13 and 14 for unabridged
Shell A-E-F Tables I and II.
Size J-H-L-S D-B-G-K C
08/09 1.180 (30.0) 1.440 (36.6)
10/11 1.180 (30.0) 1.440 (36.6) 1. When maximum cable entry (page 22) is
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) exceeded, Style 2 will be supplied. (Function S
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) only).
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 2. Metric dimensions (mm) are indicated in
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) parentheses.
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 3. Cable range is defined as the accommodations
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) range for the wire bundle or cable. Dimensions
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) shown are not intended for inspection criteria.
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 4. Consult factory for shorter lengths on straight
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) backshells.
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 5. When using Connector Designator B refer to
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) pages 18 and 19 for part number development.

TABLE IV: ELBOW DIMENSIONS
Elbow E F G H
Size Max Max Max Max
01 .457 (11.6) 1.500 (38.1) .500 (12.7) 1.445 (36.7)
02 .457 (11.6) 1.500 (38.1) .500 (12.7) 1.445 (36.7)
03 .520 (13.2) 1.510 (38.4) .595 (15.1) 1.565 (39.8) TABLE II: STANDARD FINISHES
04 .582 (14.8) 1.580 (40.1) .610 (15.5) 1.585 (40.3) GLENAIR
05 .738 (18.7) 1.770 (45.0) .885 (22.5) 1.725 (43.8) SYMBOL FINISH
06 .926 (23.5) 1.960 (49.8) .975 (24.8) 1.915 (48.6) B Cadmium Plate, Olive Drab
07 .926 (23.5) 1.960 (49.8) .975 (24.8) 1.915 (48.6) M Electroless Nickel
08 1.020 (25.9) 2.110 (53.6) 1.125 (28.6) 2.025 (51.4) NF Cadmium Plate, Olive Drab
Over Electroless Nickel
09 1.020 (25.9) 2.110 (53.6) 1.125 (28.6) 2.025 (51.4) See Inside Back Cover
10 1.145 (29.1) 2.160 (54.9) 1.225 (31.1) 2.195 (55.8) for Additional Finish Options

TABLE V: CABLE ENTRY TABLE VI: CABLE ENTRY
Dash K Cable Range Dash L Cable Entry
No. Max Min Max No. Max Max
02 .968 (24.6) .125 (3.2) .250 (6.4) 01 .656 (16.7) .125 (3.2)
03 1.046 (26.6) .250 (6.4) .375 (9.5) 02 .781 (19.8) .250 (6.4)
04 1.156 (29.4) .312 (7.9) .500 (12.7) 03 .906 (23.0) .375 (9.5)
05 1.218 (30.9) .437 (11.1) .625 (15.9) 04 1.031 (26.2) .500 (12.7)
06 1.343 (34.1) .562 (14.3) .750 (19.1) 05 1.156 (29.4) .625 (15.9)
07 1.468 (37.3) .687 (17.4) .875 (22.2) 06 1.281 (32.5) .750 (19.1)
08 1.593 (40.5) .812 (20.6) 1.000 (25.4) 07 1.406 (35.7) .875 (22.2)
10 1.843 (46.8) 1.062 (27.0) 1.250 (31.8) 08 1.531 (38.9) 1.000 (25.4)
09 1.656 (42.1) 1.125 (28.6)
10 1.781 (45.2) 1.250 (31.8)

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 59 E-Mail: sales@glenair.com
