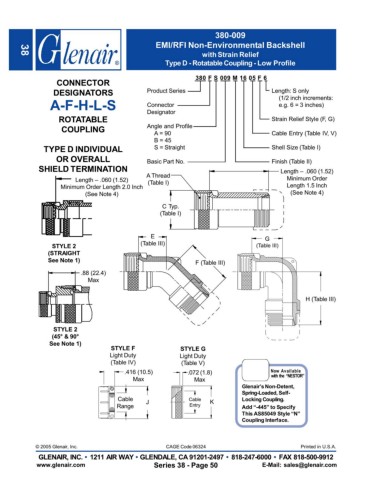

Page 186 - Circular Connector Backshells and Accessories

380-009
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type D - Rotatable Coupling - Low Profile

380 F S 009 M 16 05 F 6
CONNECTOR
DESIGNATORS Product Series Length: S only
A-F-H-L-S Connector (1/2 inch increments:
e.g. 6 = 3 inches)
Designator
ROTATABLE Strain Relief Style (F, G)
COUPLING Angle and Profile
A = 90° Cable Entry (Table IV, V)
B = 45°
TYPE D INDIVIDUAL S = Straight Shell Size (Table I)
OR OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION Length – .060 (1.52)
A Thread
Length – .060 (1.52) Minimum Order
(Table I)
Minimum Order Length 2.0 Inch Length 1.5 Inch
(See Note 4) (See Note 4)
C Typ.
(Table I)

E
G
STYLE 2 (Table III) (Table III)
(STRAIGHT
See Note 1)
F (Table III)
.88 (22.4)
Max

H (Table III)

STYLE 2
(45° & 90°
See Note 1)
STYLE F STYLE G
Light Duty Light Duty
(Table IV) (Table V)
.416 (10.5) .072 (1.8) Now Available
with the ´NESTORµ
Max Max
Glenair’s Non-Detent,
Spring-Loaded, Self-
Cable Cable Locking Coupling.
J K
Range Entry Add “-445” to Specify
This AS85049 Style “N”
Coupling Interface.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 50 E-Mail: sales@glenair.com
