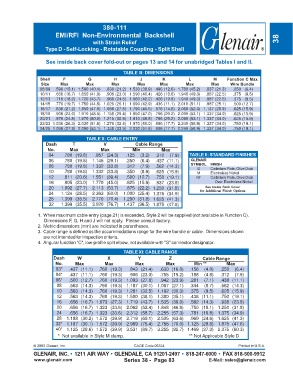

P. 219

380-111
                        EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                    Type D - Self-Locking - Rotatable Coupling - Split Shell

                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

                                                    TABLE III: DIMENSIONS
                  Shell    F          G          H          J        K          L         M     Function C Max
                  Size    Max        Max        Max       Max       Max        Max       Max     Wire Bundle
                  08/09  .596 (15.1) 1.590 (40.4)  .836 (21.2) 1.530 (38.9) .496 (12.6)  1.780 (45.2)  .837 (21.3)  .250 (6.4)
                  10/11  .656 (16.7) 1.650 (41.9)  .906 (23.0) 1.590 (40.4) .426 (10.8)  1.940 (49.3)  .887 (22.5)  .375 (9.5)
                  12/13  .716 (18.2) 1.720 (43.7)  .966 (24.5) 1.660 (42.2) .426 (10.8)  1.940 (49.3)  .887 (22.5)  .375 (9.5)
                  14/15  .776 (19.7) 1.750 (44.5)  1.026 (26.1) 1.690 (42.9) .436 (11.1)  2.010 (51.1)  .987 (25.1)  .500 (12.7)
                  16/17  .836 (21.2) 1.850 (47.0)  1.086 (27.6) 1.790 (45.5) .576 (14.6)  2.060 (52.3) 1.137 (28.9)  .625 (15.9)
                  18/19  .906 (23.0) 1.910 (48.5)  1.156 (29.4) 1.850 (47.0) .796 (20.2)  2.090 (53.1) 1.337 (34.0)  .625 (15.9)
                  20/21  .976 (24.8) 1.970 (50.0)  1.216 (30.9) 1.910 (48.5) .796 (20.2)  2.090 (53.1) 1.337 (34.0)  .625 (15.9)
                  22/23 1.036 (26.3) 2.030 (51.6)  1.276 (32.4) 1.970 (50.0) .696 (17.7)  2.240 (56.9) 1.337 (34.0)  .750 (19.1)
                  24/25 1.096 (27.8) 2.090 (53.1)  1.336 (33.9) 2.030 (51.6) .696 (17.7)  2.240 (56.9) 1.337 (34.0)  .750 (19.1)

                                     TABLE X: CABLE ENTRY
                    Dash       T            V             Cable Range
                     No.      Max          Max          Min         Max
                     04     .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)  TABLE II: STANDARD FINISHES
                     06     .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  GLENAIR
                     08     .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)  SYMBOL  FINISH
                                                                                    B    Cadmium Plate, Olive Drab
                     10     .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)    M     Electroless Nickel
                     12     .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)    NF    Cadmium Plate, Olive Drab
                     16     .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)              Over Electroless Nickel
                                                                                       See Inside Back Cover
                     20    1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)      for Additional Finish Options
                     24    1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                     28    1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                     32    1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)

                 1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied (not available in Function C).
                      Dimensions F, G, H and J will not apply.  Please consult factory.
                 2. Metric dimensions (mm) are indicated in parentheses.
                 3. Cable range is defined as the accommodations range for the wire bundle or cable.  Dimensions shown
                   are not intended for inspection criteria.
                 4. Angular function "C", low-profile split elbow, not available with "S" connector designator.
                                                     TABLE XI: CABLE RANGE
                       Dash      W            X            Y            Z             Cable Range
                        No.     Max          Max         Max          Max         Min **        Max
                        03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                        04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                        06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                         08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                         10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                         12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                         16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                         20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                         24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                         28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                        32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                        40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                         *  Not available in Style M clamp.                                                    ** Not Applicable Style D

               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 83               E-Mail: sales@glenair.com
