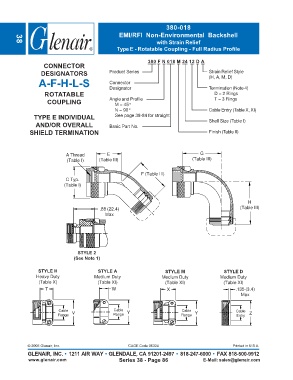

Page 222 - Circular Connector Backshells and Accessories

380-018
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type E - Rotatable Coupling - Full Radius Profile

380 F N 018 M 24 12 D A
CONNECTOR
DESIGNATORS Product Series Strain Relief Style
(H, A, M, D)
A-F-H-L-S Connector
Designator Termination (Note 4)
ROTATABLE D = 2 Rings
COUPLING Angle and Profile T = 3 Rings
M = 45°
N = 90° Cable Entry (Table X, XI)
TYPE E INDIVIDUAL See page 38-84 for straight
AND/OR OVERALL Basic Part No. Shell Size (Table I)
SHIELD TERMINATION Finish (Table II)

A Thread E G
(Table I) (Table III) (Table III)

F (Table III)
C Typ.
(Table I)

H
.88 (22.4) (Table III)
Max

STYLE 2
(See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Y Cable Cable
Range V Range Range Y Entry Z
