Page 224 - Circular Connector Backshells and Accessories

380-018
EMI/RFI Non-Environmental Backshell
with Strain Relief
38

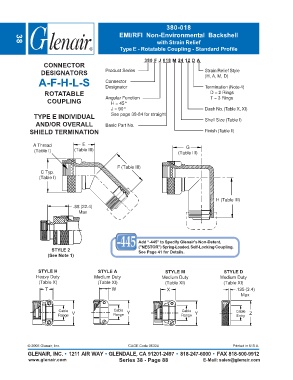

Type E - Rotatable Coupling - Standard Profile

380 F J 018 M 24 12 D A
CONNECTOR
DESIGNATORS Product Series Strain Relief Style
(H, A, M, D)
A-F-H-L-S Connector
Designator Termination (Note 4)
ROTATABLE D = 2 Rings
COUPLING Angular Function T = 3 Rings
H = 45°
J = 90° Dash No. (Table X, XI)
TYPE E INDIVIDUAL See page 38-84 for straight Shell Size (Table I)
AND/OR OVERALL Basic Part No.
SHIELD TERMINATION Finish (Table II)

A Thread E G
(Table I) (Table III)
(Table III)

F (Table III)
C Typ.
(Table I)

H (Table III)
.88 (22.4)
Max

Add “-445” to Specify Glenair’s Non-Detent,
("NESTOR") Spring-Loaded, Self-Locking Coupling.
STYLE 2 See Page 41 for Details.
(See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Cable Cable
Range V Range Y Range Y Entry Z
