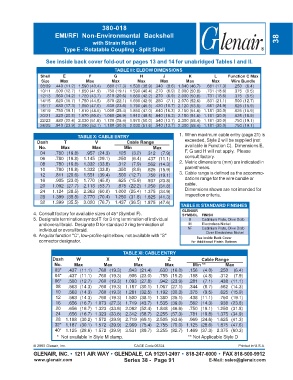

Page 227 - Circular Connector Backshells and Accessories

380-018
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type E - Rotatable Coupling - Split Shell

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS
Shell E F G H J K L Function C Max
Size Max Max Max Max Max Max Max Wire Bundle
08/09 .440 (11.2) 1.590 (40.4) .680 (17.3) 1.530 (38.9) .340 (8.6) 1.840 (46.7) .681 (17.3) .250 (6.4)
10/11 .500 (12.7) 1.650 (41.9) .750 (19.1) 1.590 (40.4) .270 (6.9) 2.000 (50.8) .731 (18.6) .375 (9.5)
12/13 .560 (14.2) 1.720 (43.7) .810 (20.6) 1.660 (42.2) .270 (6.9) 2.000 (50.8) .731 (18.6) .375 (9.5)
14/15 .620 (15.7) 1.750 (44.5) .870 (22.1) 1.690 (42.9) .280 (7.1) 2.070 (52.6) .831 (21.1) .500 (12.7)
16/17 .680 (17.3) 1.850 (47.0) .930 (23.6) 1.790 (45.5) .420 (10.7) 2.120 (53.8) .981 (24.9) .625 (15.9)
18/19 .750 (19.1) 1.910 (48.5) 1.000 (25.4) 1.850 (47.0) .640 (16.3) 2.150 (54.6) 1.181 (30.0) .625 (15.9)
20/21 .820 (20.8) 1.970 (50.0) 1.060 (26.9) 1.910 (48.5) .640 (16.3) 2.150 (54.6) 1.181 (30.0) .625 (15.9)
22/23 .880 (22.4) 2.030 (51.6) 1.120 (28.4) 1.970 (50.0) .540 (13.7) 2.300 (58.4) 1.181 (30.0) .750 (19.1)
24/25 .940 (23.9) 2.090 (53.1) 1.180 (30.0) 2.030 (51.6) .540 (13.7) 2.300 (58.4) 1.181 (30.0) .750 (19.1)

TABLE X: CABLE ENTRY 1. When maximum cable entry (page 21) is
Dash T V Cable Range exceeded, Style 2 will be supplied (not
No. Max Max Min Max available in Function C). Dimensions E,
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) F, G and H will not apply. Please
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) consult factory.
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) 2. Metric dimensions (mm) are indicated in
parentheses.
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9)
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) 3. Cable range is defined as the accommo-
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) dations range for the wire bundle or
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) cable.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) Dimensions shown are not intended for
inspection criteria.
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3)
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
TABLE II: STANDARD FINISHES
GLENAIR
4. Consult factory for available sizes of 45° (Symbol F). SYMBOL FINISH
5. Designate termination symbol T for 3 ring termination of individual B Cadmium Plate, Olive Drab
and overall braid. Designate D for standard 2 ring termination of M Electroless Nickel
NF Cadmium Plate, Olive Drab
individual or overall braid.
Over Electroless Nickel
6. Angular function "C", low-profile split elbow, not available with "S"
See Inside Back Cover
connector designator. for Additional Finish Options
TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 91 E-Mail: sales@glenair.com
