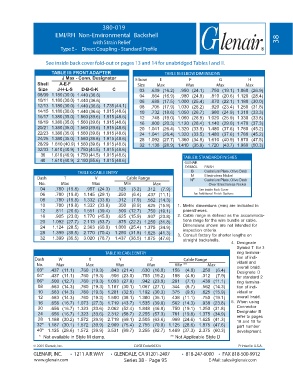

P. 231

380-019
                        EMI/RFI  Non-Environmental  Backshell
                                        with Strain Relief                                                           38
                          Type E -  Direct Coupling - Standard Prole


                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.
                       TABLE III: FRONT ADAPTER                       TABLE IV: ELBOW DIMENSIONS
                           J Max - Conn. Designator       Elbow     E           F            G           H
                 Shell    A-E-F                           Size     Max         Max         Max          Max
                 Size    J-H-L-S   D-B-G-K      C          03   .639 (16.2)  .950 (24.1)  .750 (19.1)  1.060 (26.9)
                 08/09 1.180 (30.0) 1.440 (36.6)           04   .664 (16.9)  .980 (24.9)  .810 (20.6)  1.120 (28.4)
                 10/11 1.180 (30.0) 1.440 (36.6)           06   .688 (17.5) 1.000 (25.4)  .870 (22.1)  1.180 (30.0)
                 12/13 1.180 (30.0) 1.440 (36.6)  1.735 (44.1)  08  .705 (17.9) 1.030 (26.2)  .920 (23.4)  1.250 (31.8)
                 14/15 1.180 (30.0) 1.440 (36.6)  1.915 (48.6)  10  .732 (18.6) 1.050 (26.7)  .980 (24.9)  1.310 (33.3)
                 16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  12  .748 (19.0) 1.060 (26.9) 1.020 (25.9)  1.330 (33.8)
                 18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  16  .800 (20.3) 1.120 (28.4) 1.140 (29.0)  1.470 (37.3)
                 20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  20  1.041 (26.4) 1.320 (33.5) 1.480 (37.6)  1.780 (45.2)
                 22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  24  1.041 (26.4) 1.320 (33.5) 1.480 (37.6)  1.780 (45.2)
                 24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)  28  1.092 (27.7) 1.360 (34.5) 1.610 (40.9)  1.870 (47.5)
                 28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6)  32  1.138 (28.9) 1.410 (35.8) 1.720 (43.7)  1.980 (50.3)
                 32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
                  36   1.610 (40.9) 1.750 (44.5) 1.915 (48.6)                 TABLE II: STANDARD FINISHES
                  40   1.610 (40.9) 2.190 (55.6) 1.915 (48.6)                 GLENAIR
                                                                              SYMBOL  FINISH
                                  TABLE X: CABLE ENTRY                           B    Cadmium Plate, Olive Drab
                                                                                 M
                 Dash       T            V            Cable Range                NF   Electroless Nickel
                                                                                      Cadmium Plate, Olive Drab
                 No.       Max          Max          Min         Max                      Over Electroless Nickel
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)          See Inside Back Cover
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)       for Additional Finish Options
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  1. Metric dimensions (mm) are indicated in
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)   parentheses.
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)  2. Cable range is defined as the accommoda-
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   tions range for the wire bundle or cable.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)  Dimensions shown are not intended for
                                                                              inspection criteria.
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  3. Consult factory for shorter lengths on
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)  straight  backshells.
                                                                                                  4. Designate
                                                                                                    Symbol T  for 3
                                             TABLE XI: CABLE ENTRY                                  ring termina-
                Dash      W           X            Y            Z             Cable Range           tion of indi-
                No.      Max         Max          Max          Max        Min **        Max         vidual and
                                                                                                    overall braid.
                03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)  Designate  D
                04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)  for standard 2
                06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)  ring termina-
                 08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)  tion of indi-
                 10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)  vidual or
                 12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)  overall braid.
                 16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)  5. When using
                 20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)  Connector
                 24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)  Designator B
                                                                                                    refer to pages
                 28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)  18 and 19 for
                32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)  part number
                40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)  development.
                 *  Not available in Style M clamp.                        ** Not Applicable Style D

               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC.   • 1211 AIR WAY   • GLENDALE, CA 91201-2497    • 818-247-6000  • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 95               E-Mail: sales@glenair.com
