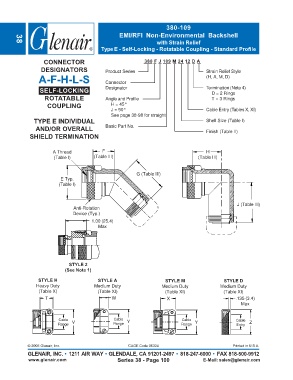

Page 236 - Circular Connector Backshells and Accessories

380-109
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type E - Self-Locking - Rotatable Coupling - Standard Profile

CONNECTOR 380 F J 109 M 24 12 D A
DESIGNATORS Product Series Strain Relief Style
A-F-H-L-S Connector (H, A, M, D)

SELF-LOCKING Designator Termination (Note 4)
D = 2 Rings
ROTATABLE Angle and Profile T = 3 Rings
COUPLING H = 45°
J = 90° Cable Entry (Tables X, XI)
See page 38-98 for straight
TYPE E INDIVIDUAL Shell Size (Table I)
AND/OR OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION

A Thread F H
(Table I) (Table III) (Table III)

G (Table III)
E Typ.
(Table I)

J (Table III)
Anti-Rotation
Device (Typ.)
1.00 (25.4)
Max

STYLE 2
(See Note 1)
STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Y Cable Cable
Range V Range Range Y Entry Z
