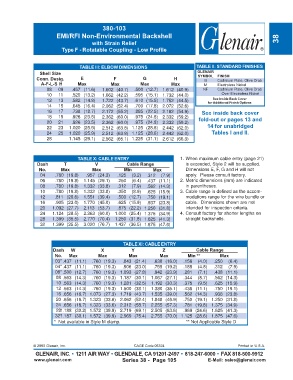

P. 241

380-103
                         EMI/RFI Non-Environmental Backshell                                                         38
                                       with Strain Relief
                           Type F - Rotatable Coupling - Low Profile



                                  TABLE III: ELBOW DIMENSIONS                      TABLE II: STANDARD FINISHES
                  Shell Size                                                        GLENAIR
                Conn. Desig.       E             F           G            H         SYMBOL  FINISH
                                                                                            Cadmium Plate, Olive Drab
                                                                                      B
                  A-F-L-S H       Max          Max          Max          Max          M     Electroless Nickel
                     08  09    .457 (11.6)  1.602 (40.7)  .500 (12.7)  1.612 (40.9)   NF    Cadmium Plate, Olive Drab
                     10  11    .520 (13.2)  1.662 (42.2)  .595 (15.1)  1.732 (44.0)             Over Electroless Nickel
                                                                                          See Inside Back Cover
                     12  13    .582 (14.8)  1.722 (43.7)  .610 (15.5)  1.752 (44.5)     for Additional Finish Options
                     14  15    .645 (16.4)  2.062 (52.4)  .700 (17.8)  2.072 (52.6)
                     16  17    .738 (18.7)  2.172 (55.2)  .885 (22.5)  2.162 (54.9)  See inside back cover
                     18  19    .926 (23.5)  2.362 (60.0)  .975 (24.8)  2.332 (59.2)  fold-out or pages 13 and
                     20  21    .926 (23.5)  2.362 (60.0)  .975 (24.8)  2.332 (59.2)
                     22  23   1.020 (25.9)  2.512 (63.8)  1.125 (28.6) 2.442 (62.0)     14 for unabridged
                     24  25   1.020 (25.9)  2.512 (63.8)  1.125 (28.6) 2.442 (62.0)      Tables I and II.
                     28       1.145 (29.1)  2.562 (65.1)  1.225 (31.1) 2.612 (66.3)



                                  TABLE X: CABLE ENTRY                      1. When maximum cable entry (page 21)
                 Dash       T            V            Cable Range              is exceeded, Style 2 will be supplied.
                 No.       Max          Max          Min         Max           Dimensions E, F, G and H will not
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)     apply.  Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)    in parentheses.
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accom-
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)    modations range for the wire bundle or
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)    cable.  Dimensions shown are not
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)    intended for inspection criteria.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)  4. Consult factory for shorter lengths on
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)   straight backshells.
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)



                                                    TABLE XI: CABLE ENTRY
                       Dash    W           X            Y            Z             Cable Range
                        No.   Max         Max          Max          Max        Min **        Max
                        03* .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                        04* .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                        06* .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08 .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                        10 .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12 .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16 .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                        20 .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1) 1.250 (31.8)
                        24 .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8) 1.375 (34.9)
                        28 1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6) 1.625 (41.3)
                        32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
                        *  Not available in Style M clamp.                                                    ** Not Applicable Style D





               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                      Series 38 -  Page 105               E-Mail: sales@glenair.com
