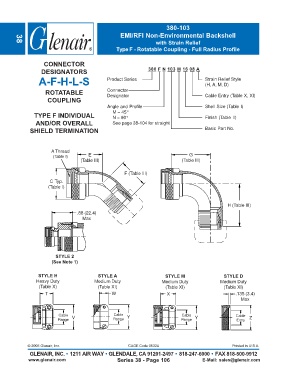

Page 242 - Circular Connector Backshells and Accessories

380-103
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type F - Rotatable Coupling - Full Radius Profile

CONNECTOR
DESIGNATORS 380 F N 103 M 16 08 A
A-F-H-L-S Product Series Strain Relief Style
(H, A, M, D)
ROTATABLE Connector Cable Entry (Table X, XI)
Designator
COUPLING
Angle and Profile Shell Size (Table I)
TYPE F INDIVIDUAL M = 45° Finish (Table II)
N = 90°
AND/OR OVERALL See page 38-104 for straight
SHIELD TERMINATION Basic Part No.

A Thread
E G
(Table I)
(Table III) (Table III)

F (Table III)
C Typ.
(Table I)

H (Table III)
.88 (22.4)
Max

STYLE 2
(See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Y Cable Cable
Range V Range Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
