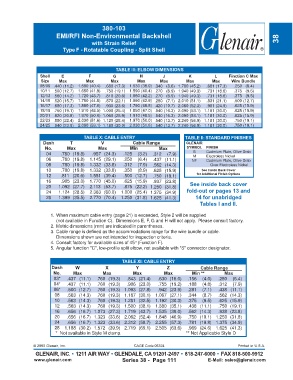

Page 247 - Circular Connector Backshells and Accessories

380-103
EMI/RFI Non-Environmental Backshell 38
with Strain Relief
Type F - Rotatable Coupling - Split Shell

TABLE III: ELBOW DIMENSIONS
Shell E F G H J K L Finction C Max
Size Max Max Max Max Max Max Max Wire Bundle
08/09 .440 (11.2) 1.590 (40.4) .680 (17.3) 1.530 (38.9) .340 (8.6) 1.780 (45.2) .681 (17.3) .250 (6.4)
10/11 .500 (12.7) 1.650 (41.9) .750 (19.1) 1.590 (40.4) .270 (6.9) 1.940 (49.3) .731 (18.6) .375 (9.5)
12/13 .560 (14.2) 1.720 (43.7) .810 (20.6) 1.660 (42.2) .270 (6.9) 1.940 (49.3) .731 (18.6) .375 (9.5)
14/15 .620 (15.7) 1.750 (44.5) .870 (22.1) 1.690 (42.9) .280 (7.1) 2.010 (51.1) .831 (21.1) .500 (12.7)
16/17 .680 (17.3) 1.850 (47.0) .930 (23.6) 1.790 (45.5) .420 (10.7) 2.060 (52.3) .981 (24.9) .625 (15.9)
18/19 .750 (19.1) 1.910 (48.5) 1.000 (25.4) 1.850 (47.0) .640 (16.3) 2.090 (53.1) 1.181 (30.0) .625 (15.9)
20/21 .820 (20.8) 1.970 (50.0) 1.060 (26.9) 1.910 (48.5) .640 (16.3) 2.090 (53.1) 1.181 (30.0) .625 (15.9)
22/23 .880 (22.4) 2.030 (51.6) 1.120 (28.4) 1.970 (50.0) .540 (13.7) 2.240 (56.9) 1.181 (30.0) .750 (19.1)
24/25 .940 (23.9) 2.090 (53.1) 1.180 (30.0) 2.030 (51.6) .540 (13.7) 2.240 (56.9) 1.181 (30.0) .750 (19.1)

TABLE X: CABLE ENTRY TABLE II: STANDARD FINISHES
Dash T V Cable Range GLENAIR
No. Max Max Min Max SYMBOL FINISH
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) B Cadmium Plate, Olive Drab
M Electroless Nickel
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) NF Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) Over Electroless Nickel
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) See Inside Back Cover
for Additional Finish Options
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1)
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) See inside back cover
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8)
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) fold-out or pages 13 and
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 14 for unabridged
Tables I and II.

1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied
(not available in Function C). Dimensions E, F, G and H will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for available sizes of 45° (Function F).
5. Angular function "C", low-profile split elbow, not available with "S" connector designator.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 111 E-Mail: sales@glenair.com
