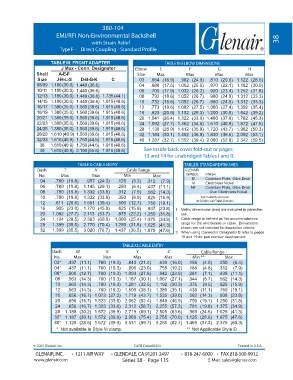

Page 251 - Circular Connector Backshells and Accessories

380-104
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type F - Direct Coupling - Standard Prole

TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .664 (16.9) .982 (24.9) .810 (20.6) 1.122 (28.5)
08/09 1.180 (30.0) 1.440 (36.6) 04 .688 (17.5) 1.002 (25.5) .870 (22.1) 1.182 (30.0)
10/11 1.180 (30.0) 1.440 (36.6) 06 .705 (17.9) 1.032 (26.2) .920 (23.4) 1.252 (31.8)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) 08 .732 (18.6) 1.052 (26.7) .980 (24.9) 1.312 (33.3)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 10 .732 (18.6) 1.052 (26.7) .980 (24.9) 1.312 (33.3)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .773 (19.6) 1.082 (27.5) 1.080 (27.4) 1.392 (35.4)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 .823 (20.9) 1.152 (29.3) 1.200 (30.5) 1.542 (39.2)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 20 1.041 (26.4) 1.322 (33.6) 1.480 (37.6) 1.782 (45.3)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 24 1.092 (27.7) 1.362 (34.6) 1.610 (40.9) 1.872 (47.5)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 28 1.138 (28.9) 1.412 (35.9) 1.720 (43.7) 1.982 (50.3)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 32 1.184 (30.1) 1.452 (36.9) 1.830 (46.5) 2.092 (53.1)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) 40 1.287 (32.7) 1.552 (39.4) 2.080 (52.8) 2.342 (59.5)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) See inside back cover fold-out or pages
13 and 14 for unabridged Tables I and II.
TABLE X: CABLE ENTRY TABLE II: STANDARD FINISHES
Dash T V Cable Range GLENAIR
No. Max Max Min Max SYMBOL FINISH
B
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) M Cadmium Plate, Olive Drab
Electroless Nickel
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) NF Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) Over Electroless Nickel
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) See Inside Back Cover
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) for Additional Finish Options
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 1. Metric dimensions (mm) are indicated in parenthe-
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) ses.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 2. Cable range is defined as the accommodations
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) range for the wire bundle or cable. Dimensions
shown are not intended for inspection criteria.
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) 3. When using Connector Designator B refer to pages
18 and 19 for part number development.
TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 115 E-Mail: sales@glenair.com
