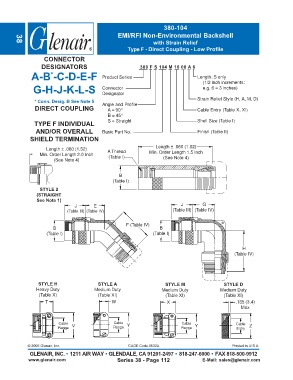

Page 248 - Circular Connector Backshells and Accessories

380-104
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type F - Direct Coupling - Low Profile
CONNECTOR
DESIGNATORS 380 F S 104 M 16 08 A 6
A-B -C-D-E-F Product Series Length: S only
*
(1/2 inch increments:
G-H-J-K-L-S Connector e.g. 6 = 3 inches)
Designator
Strain Relief Style (H, A, M, D)
* Conn. Desig. B See Note 5
DIRECT COUPLING Angle and Profile Cable Entry (Table X, XI)
A = 90°
B = 45°
TYPE F INDIVIDUAL S = Straight Shell Size (Table I)
AND/OR OVERALL Basic Part No. Finish (Table II)
SHIELD TERMINATION

Length ± .060 (1.52)
Length ± .060 (1.52) A Thread
Min. Order Length 2.0 Inch Min. Order Length 1.5 Inch
(Table I) (See Note 4)
(See Note 4)

B
(Table I)
STYLE 2
(STRAIGHT
See Note 1)
J E J G
(Table III) (Table IV) (Table III) (Table IV)

F (Table IV)
B B
(Table I) (Table I)

H
(Table IV)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Y Cable Cable
Range V Range Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 112 E-Mail: sales@glenair.com
