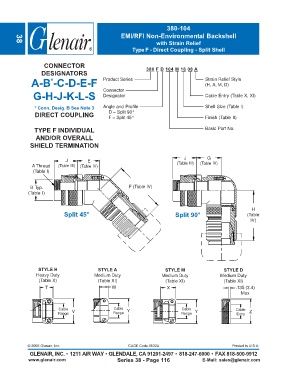

Page 252 - Circular Connector Backshells and Accessories

380-104
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type F - Direct Coupling - Split Shell

CONNECTOR 380 F D 104 M 16 08 A
DESIGNATORS
A-B -C-D-E-F Product Series Strain Relief Style
*
(H, A, M, D)
Connector
G-H-J-K-L-S Designator Cable Entry (Table X, XI)

* Conn. Desig. B See Note 3 Angle and Profile Shell Size (Table I)
DIRECT COUPLING D = Split 90°
F = Split 45° Finish (Table II)

TYPE F INDIVIDUAL Basic Part No.
AND/OR OVERALL
SHIELD TERMINATION

J G
J E (Table III) (Table IV)
A Thread (Table III) (Table IV)
(Table I)

B Typ. F (Table IV)
(Table I)

H
Split 45° Split 90° (Table
IV)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Y Cable Cable
Range V Range Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 116 E-Mail: sales@glenair.com
