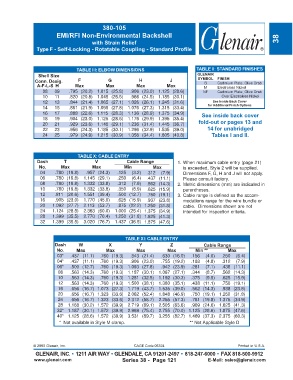

P. 257

380-105
                         EMI/RFI Non-Environmental Backshell
                                       with Strain Relief                                                            38
                Type F - Self-Locking - Rotatable Coupling - Standard Profile




                                 TABLE III: ELBOW DIMENSIONS                       TABLE II: STANDARD FINISHES
                 Shell Size                                                         GLENAIR
                Conn. Desig.      F           G            H            J           SYMBOL  FINISH
                A-F-L-S H       Max          Max          Max          Max            B     Cadmium Plate, Olive Drab
                                                                                            Electroless Nickel
                                                                                      M
                   08   09    .795 (20.2)  1.015 (25.8)  .906 (23.0)  1.125 (28.6)    NF    Cadmium Plate, Olive Drab
                   10   11    .820 (20.8)  1.045 (26.5)  .966 (24.5)  1.185 (30.1)              Over Electroless Nickel
                   12   13    .844 (21.4)  1.065 (27.1) 1.026 (26.1)  1.245 (31.6)        See Inside Back Cover
                                                                                        for Additional Finish Options
                   14   15    .861 (21.9)  1.095 (27.8) 1.076 (27.3)  1.315 (33.4)
                   16   17    .888 (22.6)  1.115 (28.3) 1.136 (28.9)  1.375 (34.9)   See inside back cover
                   18   19    .904 (23.0)  1.125 (28.6) 1.176 (29.9)  1.395 (35.4)  fold-out or pages 13 and
                   20   21    .929 (23.6)  1.145 (29.1) 1.236 (31.4)  1.445 (36.7)
                   22   23    .956 (24.3)  1.185 (30.1) 1.296 (32.9)  1.535 (39.0)      14 for unabridged
                   24   25    .979 (24.9)  1.215 (30.9) 1.356 (34.4)  1.605 (40.8)       Tables I and II.



                                  TABLE X: CABLE ENTRY
                 Dash       T            V            Cable Range          1. When maximum cable entry (page 21)
                 No.       Max          Max          Min         Max          is exceeded, Style 2 will be supplied.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)    Dimensions F, G, H and J will not apply.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)   Please consult factory.
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)  2. Metric dimensions (mm) are indicated in
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)   parentheses.
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)  3. Cable range is defined as the accom-
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)   modations range for the wire bundle or
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   cable.  Dimensions shown are not
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)  intended for inspection criteria.
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)



                                                     TABLE XI: CABLE ENTRY
                        Dash      W           X            Y            Z             Cable Range
                         No.     Max         Max          Max          Max         Min **       Max
                         03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                         04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                         06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                         08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                         10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                         12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                         16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                         20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                         24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                         28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                         32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                         40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                          *  Not available in Style M clamp.                                                    ** Not Applicable Style D




               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                      Series 38 -  Page 121               E-Mail: sales@glenair.com
