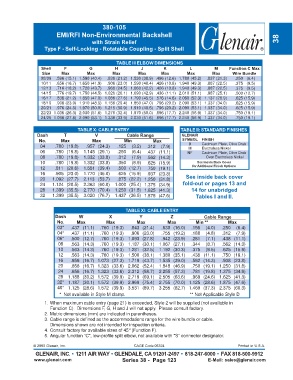

Page 259 - Circular Connector Backshells and Accessories

380-105
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type F - Self-Locking - Rotatable Coupling - Split Shell

TABLE III ELBOW DIMENSIONS
Shell F G H J K L M Function C Max
Size Max Max Max Max Max Max Max Wire Bundle
08/09 .596 (15.1) 1.590 (40.4) .836 (21.2) 1.530 (38.9) .496 (12.6) 1.780 (45.2) .837 (21.3) .250 (6.4)
10/11 .656 (16.7) 1.650 (41.9) .906 (23.0) 1.590 (40.4) .426 (10.8) 1.940 (49.3) .887 (22.5) .375 (9.5)
12/13 .716 (18.2) 1.720 (43.7) .966 (24.5) 1.660 (42.2) .426 (10.8) 1.940 (49.3) .887 (22.5) .375 (9.5)
14/15 .776 (19.7) 1.750 (44.5) 1.026 (26.1) 1.690 (42.9) .436 (11.1) 2.010 (51.1) .987 (25.1) .500 (12.7)
16/17 .836 (21.2) 1.850 (47.0) 1.086 (27.6) 1.790 (45.5) .576 (14.6) 2.060 (52.3) 1.137 (28.9) .625 (15.9)
18/19 .906 (23.0) 1.910 (48.5) 1.156 (29.4) 1.850 (47.0) .796 (20.2) 2.090 (53.1) 1.337 (34.0) .625 (15.9)
20/21 .976 (24.8) 1.970 (50.0) 1.216 (30.9) 1.910 (48.5) .796 (20.2) 2.090 (53.1) 1.337 (34.0) .625 (15.9)
22/23 1.036 (26.3) 2.030 (51.6) 1.276 (32.4) 1.970 (50.0) .696 (17.7) 2.240 (56.9) 1.337 (34.0) .750 (19.1)
24/25 1.096 (27.8) 2.090 (53.1) 1.336 (33.9) 2.030 (51.6) .696 (17.7) 2.240 (56.9) 1.337 (34.0) .750 (19.1)

TABLE X: CABLE ENTRY TABLE II: STANDARD FINISHES
Dash T V Cable Range GLENAIR
No. Max Max Min Max SYMBOL FINISH
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) B Cadmium Plate, Olive Drab
Electroless Nickel
M
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) NF Cadmium Plate, Olive Drab
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) Over Electroless Nickel
See Inside Back Cover
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) for Additional Finish Options
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1)
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) See inside back cover
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8)
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) fold-out or pages 13 and
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 14 for unabridged
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) Tables I and II.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D
1. When maximum cable entry (page 21) is exceeded, Style 2 will be supplied (not available in
Function C). Dimensions F, G, H and J will not apply. Please consult factory.
2. Metric dimensions (mm) are indicated in parentheses.
3. Cable range is defined as the accommodations range for the wire bundle or cable.
Dimensions shown are not intended for inspection criteria.
4. Consult factory for available sizes of 45° (Function F).
5. Angular function "C", low-profile split elbow, not available with "S" connector designator.
