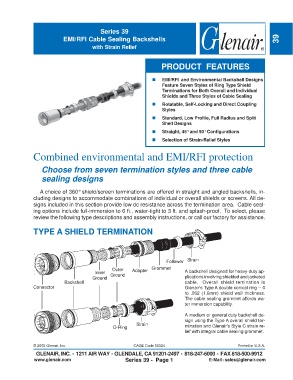

Page 263 - Circular Connector Backshells and Accessories

Series 39
EMI/RFI Cable Sealing Backshells 39

with Strain Relief

PRODUCT FEATURES

„ „ „ „ „ EMI/RFI and Environmental Backshell Designs
Feature Seven Styles of Ring Type Shield
Terminations for Both Overall and Individual
Shields and Three Styles of Cable Sealing
„ „ „ „ „ Rotatable, Self-Locking and Direct Coupling
Styles
„ „ „ „ „ Standard, Low Profile, Full Radius and Split
Shell Designs
„ „ „ „ „ Straight, 45° and 90° Configurations
„ „ „ „ „ Selection of Strain-Relief Styles

Combined environmental and EMI/RFI protection

Choose from seven termination styles and three cable
sealing designs

A choice of 360° shield/screen terminations are offered in straight and angled backshells, in-
cluding designs to accommodate combinations of individual or overall shields or screens. All de-
signs included in this section provide low dc resistance across the termination area. Cable seal-
ing options include full-immersion to 6 ft., water-tight to 3 ft. and splash-proof. To select, please
review the following type descriptions and assembly instructions, or call our factory for assistance.

TYPE A SHIELD TERMINATION

Follower Strain
Outer Adapter Grommet
Inner Ground A backshell designed for heavy-duty ap-
Ground plications involving shielded and jacketed
Backshell cable. Overall shield temination is
Connector Glenair's Type A double conical ring -- 0
to .062 (1.6mm) shield wall thickness.
The cable sealing grommet affords wa-
ter immersion capability.

A medium or general duty backshell de-
sign using the Type A overall shield ter-
Strain
O-Ring mination and Glenair's Style C strain re-
lief with integral cable sealing grommet.

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 39 - Page 1 E-Mail: sales@glenair.com
