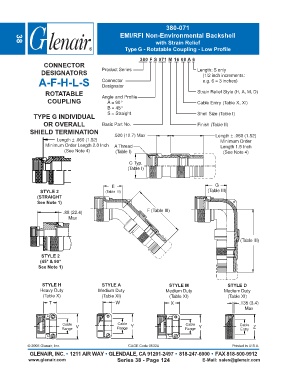

P. 260

380-071
                                                   EMI/RFI Non-Environmental Backshell
                                                                  with Strain Relief
        38
                                                     Type G - Rotatable Coupling - Low Profile

                                                           380 F S 071 M 16 08 A 6
                   CONNECTOR
                  DESIGNATORS               Product Series                         Length: S only
                                                                                      (1/2 inch increments:
                 A-F-H-L-S                  Connector                                 e.g. 6 = 3 inches)
                                            Designator
                    ROTATABLE               Angle and Profile                      Strain Relief Style (H, A, M, D)
                     COUPLING                 A = 90°                              Cable Entry (Table X, XI)
                                              B = 45°
               TYPE G INDIVIDUAL              S = Straight                         Shell Size (Table I)
                   OR OVERALL               Basic Part No.                         Finish (Table II)
              SHIELD TERMINATION
                                                 .500 (12.7) Max                           Length ± .060 (1.52)
                         Length ± .060 (1.52)                                                Minimum Order
                    Minimum Order Length 2.0 Inch  A Thread                                  Length 1.5 Inch
                            (See Note 4)         (Table I)                                    (See Note 4)

                                                       C Typ.
                                                      (Table I)



                                                E                                          G
                  STYLE 2                    (Table III)                                (Table III)
                 (STRAIGHT
                 See Note 1)
                                                              F (Table III)
                           .88 (22.4)
                              Max




                                                                                                    H (Table III)


                  STYLE 2
                  (45° & 90°
                 See Note 1)



                   STYLE H                  STYLE A                     STYLE M                 STYLE D
                  Heavy Duty              Medium Duty                 Medium Duty              Medium Duty
                   (Table X)                (Table XI)                  (Table XI)              (Table XI)
                      T                          W                      X                            .135 (3.4)
                                                                                                       Max


                           Cable                  Cable  Y                     Cable                 Cable
                           Range  V               Range                       Range  Y               Entry  Z



             © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
             GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                      Series 38 - Page 124                E-Mail: sales@glenair.com
