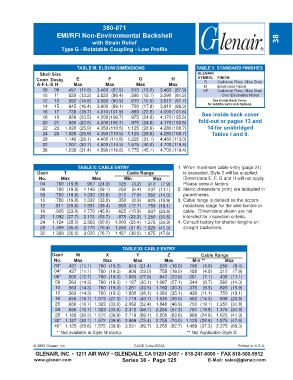

P. 261

380-071
                         EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                           Type G - Rotatable Coupling - Low Profile



                                 TABLE III: ELBOW DIMENSIONS                       TABLE II: STANDARD FINISHES
                  Shell Size                                                        GLENAIR
                Conn. Desig.     E            F            G             H          SYMBOL  FINISH
                A-F-L-S H       Max          Max          Max           Max           B     Cadmium Plate, Olive Drab
                                                                                      M     Electroless Nickel
                   08   09   .457 (11.6)  3.460 (87.9)  .510 (13.0)  3.460 (87.9)     NF    Cadmium Plate, Olive Drab
                   10   11   .520 (13.2)  3.520 (89.4)  .595 (15.1)  3.590 (91.2)               Over Electroless Nickel
                   12   13   .582 (14.8)  3.580 (90.9)  .610 (15.5)  3.610 (91.7)         See Inside Back Cover
                                                                                        for Additional Finish Options
                   14   15   .645 (16.4)  3.900 (99.1)  .700 (17.8)  3.910 (99.3)
                   16   17   .738 (18.7)  4.010(101.9)  .885 (22.5)  4.000(101.6)    See inside back cover
                   18   19   .926 (23.5)  4.200(106.7)  .975 (24.8)  4.170(105.9)
                   20   21   .926 (23.5)  4.200(106.7)  .975 (24.8)  4.170(105.9)   fold-out or pages 13 and
                   22   23  1.020 (25.9)  4.350 (110.5)  1.125 (28.6)  4.280(108.7)     14 for unabridged
                   24   25  1.020 (25.9)  4.350 (110.5)  1.125 (28.6)  4.280(108.7)      Tables I and II.
                   28       1.145 (29.1)  4.400 (111.8)  1.225 (31.1)  4.450 (113.0)
                   32       1.207 (30.7)  4.500 (114.3)  1.575 (40.0)  4.700 (119.4)
                   36       1.238 (31.4)  4.590 (116.6)  1.775 (45.1)  4.700 (119.4)


                                  TABLE X: CABLE ENTRY                     1. When maximum cable entry (page 21)
                 Dash       T            V            Cable Range             is exceeded, Style 2 will be supplied.
                 No.       Max          Max          Min         Max          Dimensions E, F, G and H will not apply.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)    Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated in
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)   parentheses.
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accom-
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)   modations range for the wire bundle or
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)   cable.  Dimensions shown are not
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   intended for inspection criteria.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)  4. Consult factory for shorter lengths on
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  straight backshells.
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)


                                                    TABLE XI: CABLE ENTRY
                       Dash      W           X            Y            Z             Cable Range
                        No.     Max         Max          Max          Max        Min **        Max
                        03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                        04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                        06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                        32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                        40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                         *  Not available in Style M clamp.                                                    ** Not Applicable Style D


               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                      Series 38 -  Page 125               E-Mail: sales@glenair.com
