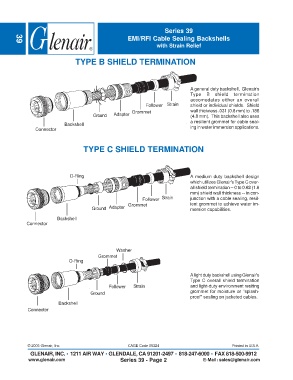

Page 264 - Circular Connector Backshells and Accessories

Series 39
EMI/RFI Cable Sealing Backshells
with Strain Relief
39

TYPE B SHIELD TERMINATION

A general duty backshell, Glenair's
Type B shield termination
accomodates either an overall
Follower Strain shield or individual shields. Shield
Grommet wall thickness .031 (0.8 mm) to .188
Ground Adapter (4.8 mm). This backshell also uses
a resilient grommet for cable seal-
Backshell
Connector ing in water immersion applications.

TYPE C SHIELD TERMINATION

O-Ring A medium duty backshell design
which utilizes Glenair's Type C over-
all shield termination -- 0 to 0.62 (1.6
mm) shield wall thickness -- in con-
Follower Strain junction with a cable sealing, resil-
Grommet ient grommet to achieve water im-
Ground Adapter mersion capabilities.
Backshell
Connector

Washer
Grommet
O-Ring

A light duty backshell using Glenair's
Type C overall shield termination
Follower Strain and light-duty environment resiting
Ground grommet for moisture or "splash-
proof" sealing on jacketed cables.
Backshell
Connector
