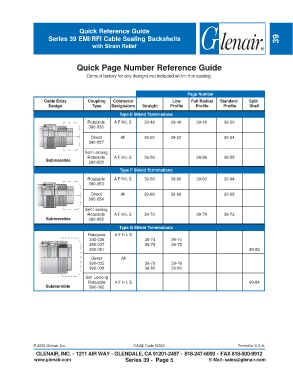

Quick Reference Guide
Series 39 EMI/RFI Cable Sealing Backshells 39
with Strain Relief
Quick Page Number Reference Guide
Consult factory for any designs not included within this catalog.
Page Number
Cable Entry Coupling Connector Low Full Radius Standard Split
Design Type Designators Straight Profile Profile Profile Shell
Type E Shield Terminations
Rotatable A F H L S 39-46 39-46 39-48 39-50
390-056
Direct All 39-52 39-52 39-54
390-057
Self-Locking
Rotatable A F H L S 39-56 39-56 39-58
Submersible 390-058
Type F Shield Terminations
Rotatable A F H L S 39-60 39-60 39-62 39-64
390-053
Direct All 39-66 39-66 39-68
390-054
Self-Locking
Rotatable A F H L S 39-70 39-70 39-72
Submersible 390-055
Type G Shield Terminations
Rotatable A F H L S
390-036 39-74 39-74
390-037 39-78 39-78
390-061 39-82
Direct All
390-035 39-76 39-76
390-038 39-80 39-80
Self Locking
Rotatable A F H L S 39-84
Submersible 390-062
