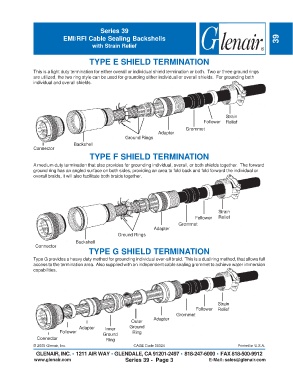

Page 265 - Circular Connector Backshells and Accessories

Series 39
EMI/RFI Cable Sealing Backshells 39
with Strain Relief

TYPE E SHIELD TERMINATION

This is a light duty termination for either overall or individual shield termination or both. Two or three ground rings
are utilized, the two ring style can be used for grounding either individual or overall shields. For grounding both
individual and overall shields.

Strain
Follower Relief
Grommet
Adapter
Ground Rings
Backshell
Connector
TYPE F SHIELD TERMINATION
A medium duty termination that also provides for grounding individual, overall, or both shields together. The forward
ground ring has an angled surface on both sides, providing an area to fold back and fold forward the individual or
overall braids, it will also facilitate both braids together.

Strain
Follower Relief
Grommet
Adapter
Ground Rings
Backshell
Connector
TYPE G SHIELD TERMINATION
Type G provides a heavy duty method for grounding individual over-all braid. This is a dual ring method, that allows full
access to the termination area. Also supplied with an independent cable sealing grommet to achieve water immersion
capabilities.

Strain
Follower Relief
Grommet
Adapter
Outer
Adapter Inner Ground
Follower Ground Ring
Connector Ring
