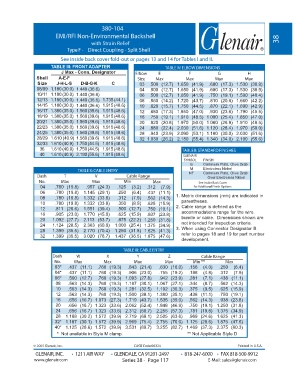

Page 253 - Circular Connector Backshells and Accessories

380-104
EMI/RFI Non-Environmental Backshell 38
with Strain Relief
Type F - Direct Coupling - Split Shell
See inside back cover fold-out or pages 13 and 14 for Tables I and II.

TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .500 (12.7) 1.650 (41.9) .680 (17.3) 1.530 (38.9)
08/09 1.180 (30.0) 1.440 (36.6) 04 .500 (12.7) 1.650 (41.9) .680 (17.3) 1.530 (38.9)
10/11 1.180 (30.0) 1.440 (36.6) 06 .500 (12.7) 1.650 (41.9) .750 (19.1) 1.590 (40.4)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) 08 .560 (14.2) 1.720 (43.7) .810 (20.6) 1.660 (42.2)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 10 .620 (15.7) 1.750 (44.5) .870 (22.1) 1.690 (42.9)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .680 (17.3) 1.850 (47.0) .930 (23.6) 1.790 (45.5)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 .750 (19.1) 1.910 (48.5) 1.000 (25.4) 1.850 (47.0)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 20 .820 (20.8) 1.970 (50.0) 1.060 (26.9) 1.910 (48.5)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 24 .880 (22.4) 2.030 (51.6) 1.120 (28.4) 1.970 (50.0)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 28 .940 (23.9) 2.090 (53.1) 1.180 (30.0) 2.030 (51.6)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 32 1.030 (26.2) 2.180 (55.4) 1.340 (34.0) 2.190 (55.6)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) TABLE II: STANDARD FINISHES
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) GLENAIR
SYMBOL FINISH
B Cadmium Plate, Olive Drab
TABLE X: CABLE ENTRY M Electroless Nickel
Dash T V Cable Range NF Cadmium Plate, Olive Drab
Over Electroless Nickel
No. Max Max Min Max See Inside Back Cover
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) for Additional Finish Options
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1)
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) 1. Metric dimensions (mm) are indicated in
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) parentheses.
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) 2. Cable range is defined as the
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) accommodations range for the wire
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) bundle or cable. Dimensions shown are
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) not intended for inspection criteria.
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 3. When using Connector Designator B
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) refer to pages 18 and 19 for part number
development.
TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 117 E-Mail: sales@glenair.com
