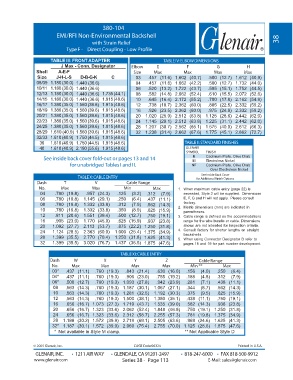

Page 249 - Circular Connector Backshells and Accessories

380-104
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type F - Direct Coupling - Low Prole

TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .457 (11.6) 1.602 (40.7) .500 (12.7) 1.612 (40.9)
08/09 1.180 (30.0) 1.440 (36.6) 04 .457 (11.6) 1.662 (42.2) .500 (12.7) 1.732 (44.0)
10/11 1.180 (30.0) 1.440 (36.6) 06 .520 (13.2) 1.722 (43.7) .595 (15.1) 1.752 (44.5)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) 08 .582 (14.8) 2.062 (52.4) .610 (15.5) 2.072 (52.6)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 10 .645 (16.4) 2.172 (55.2) .700 (17.8) 2.162 (54.9)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .738 (18.7) 2.362 (60.0) .885 (22.5) 2.332 (59.2)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 .926 (23.5) 2.362 (60.0) .975 (24.8) 2.332 (59.2)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 20 1.020 (25.9) 2.512 (63.8) 1.125 (28.6) 2.442 (62.0)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 24 1.145 (29.1) 2.512 (63.8) 1.225 (31.1) 2.442 (62.0)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 28 1.207 (30.7) 2.562 (65.1) 1.575 (40.0) 2.612 (66.3)
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 32 1.238 (31.4) 2.662 (67.6) 1.775 (45.1) 2.862 (72.7)
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6)
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) TABLE II: STANDARD FINISHES
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) GLENAIR
SYMBOL FINISH
B
See inside back cover fold-out or pages 13 and 14 M Cadmium Plate, Olive Drab
Electroless Nickel
for unabridged Tables I and II. NF Cadmium Plate, Olive Drab
Over Electroless Nickel
See Inside Back Cover
TABLE X: CABLE ENTRY for Additional Finish Options
Dash T V Cable Range
No. Max Max Min Max 1. When maximum cable entry (page 22) is
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) exceeded, Style 2 will be supplied. Dimensions
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) E, F, G and H will not apply. Please consult
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) factory.
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) 2. Metric dimensions (mm) are indicated in
parentheses.
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) 3. Cable range is defined as the accommodations
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) range for the wire bundle or cable. Dimensions
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) shown are not intended for inspection criteria.
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) 4. Consult factory for shorter lengths on straight
backshells.
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) 5. When using Connector Designator B refer to
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) pages 18 and 19 for part number development.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 113 E-Mail: sales@glenair.com
