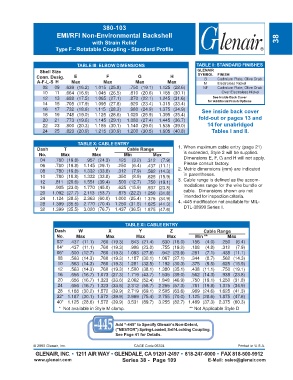

P. 245

380-103
                         EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                        Type F - Rotatable Coupling - Standard Profile


                                 TABLE III: ELBOW DIMENSIONS                       TABLE II: STANDARD FINISHES
                  Shell Size                                                        GLENAIR
                Conn. Desig.    E            F             G            H           SYMBOL  FINISH
                                                                                      B
                                                                                            Cadmium Plate, Olive Drab
                A-F-L-S H      Max          Max           Max          Max            M     Electroless Nickel
                   08   09  .639 (16.2)  1.015 (25.8)  .750 (19.1)  1.125 (28.6)      NF    Cadmium Plate, Olive Drab
                   10   11  .664 (16.9)  1.045 (26.5)  .810 (20.6)  1.185 (30.1)                Over Electroless Nickel
                   12   13  .688 (17.5)  1.065 (27.1)  .870 (22.1)  1.245 (31.6)          See Inside Back Cover
                                                                                        for Additional Finish Options
                   14   15  .705 (17.9)  1.095 (27.8)  .920 (23.4)  1.315 (33.4)
                   16   17  .732 (18.6)  1.115 (28.3)  .980 (24.9)  1.375 (34.9)     See inside back cover
                   18   19  .748 (19.0)  1.125 (28.6)  1.020 (25.9)  1.395 (35.4)   fold-out or pages 13 and
                   20   21  .773 (19.6)  1.145 (29.1)  1.080 (27.4)  1.445 (36.7)
                   22   23  .800 (20.3)  1.185 (30.1)  1.140 (29.0)  1.535 (39.0)       14 for unabridged
                   24   25  .823 (20.9)  1.215 (30.9)  1.200 (30.5)  1.605 (40.8)        Tables I and II.

                                  TABLE X: CABLE ENTRY
                 Dash       T            V            Cable Range          1. When maximum cable entry (page 21)
                 No.       Max          Max          Min         Max          is exceeded, Style 2 will be supplied.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)    Dimensions E, F, G and H will not apply.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)   Please consult factory.
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)  2. Metric dimensions (mm) are indicated
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)   in parentheses.
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)  3. Cable range is defined as the accom-
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)   modations range for the wire bundle or
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   cable.  Dimensions shown are not
                                                                              intended for inspection criteria.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)  4. -445 modification not available for MIL-
                                                                              DTL-38999 Series II.
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)

                                                     TABLE XI: CABLE ENTRY
                        Dash      W           X            Y            Z             Cable Range
                         No.     Max         Max          Max          Max         Min **       Max
                         03*  .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                         04*  .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                         06*  .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                         08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                         10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                         12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                         16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                         20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                         24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                         28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                         32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                         40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                          *  Not available in Style M clamp.                                                    ** Not Applicable Style D


                                                 Add “-445” to Specify Glenair’s Non-Detent,
                                                 ("NESTOR") Spring-Loaded, Self-Locking Coupling.
                                                 See Page 41 for Details.


               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                      Series 38 -  Page 109               E-Mail: sales@glenair.com
