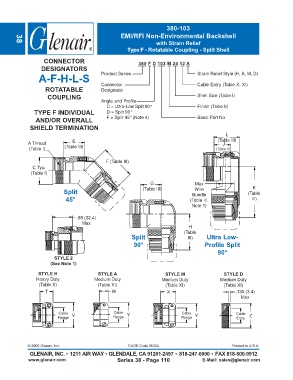

Page 246 - Circular Connector Backshells and Accessories

380-103
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type F - Rotatable Coupling - Split Shell

CONNECTOR 380 F D 103 M 24 12 A
DESIGNATORS
A-F-H-L-S Product Series Strain Relief Style (H, A, M, D)

Connector Cable Entry (Table X, XI)
ROTATABLE Designator
COUPLING Shell Size (Table I)
Angle and Profile
C = Ultra-Low Split 90° Finish (Table II)
TYPE F INDIVIDUAL D = Split 90°
AND/OR OVERALL F = Split 45° (Note 4) Basic Part No.
SHIELD TERMINATION

L
E (Table III)
A Thread J
(Table I) (Table III) (Table III)

F (Table III)
C Typ.
(Table I)
G Max
K
Wire
Split (Table III) Bundle (Table
45° (Table III, III)
Note 1)

.88 (22.4)
Max
H
(Table
Split III) Ultra Low-
90° Profile Split
90°
STYLE 2
(See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Cable Cable
Range V Range Y Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 110 E-Mail: sales@glenair.com
