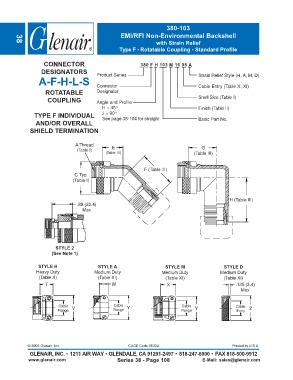

380-103
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type F - Rotatable Coupling - Standard Profile

CONNECTOR 380 F H 103 M 16 08 A
DESIGNATORS Product Series Strain Relief Style (H, A, M, D)
A-F-H-L-S
Connector Cable Entry (Table X, XI)
ROTATABLE Designator
COUPLING Angle and Profile Shell Size (Table I)

H = 45° Finish (Table II)
TYPE F INDIVIDUAL J = 90°
AND/OR OVERALL See page 38-104 for straight Basic Part No.
SHIELD TERMINATION

A Thread
E G
(Table I)
(Table III) (Table III)

F (Table III)
C Typ.
(Table I)

H (Table III)
.88 (22.4)
Max

STYLE 2
(See Note 1)

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table X) (Table XI) (Table XI) (Table XI)
T W X .135 (3.4)
Max

Cable Cable Cable Cable
Range V Range Y Range Y Entry Z

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 108 E-Mail: sales@glenair.com
