P. 239

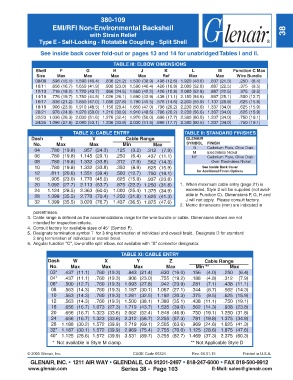

380-109
                       EMI/RFI Non-Environmental Backshell                                                              38
                                       with Strain Relief
                 Type E - Self-Locking - Rotatable Coupling - Split Shell

                  See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

                                                TABLE III: ELBOW DIMENSIONS
                Shell     F          G          H           J         K          L          M     Function C Max
                Size     Max        Max        Max         Max       Ref        Max        Max      Wire Bundle

                08/09    .596 (15.1)   1.590 (40.4)   .836 (21.2)   1.530 (38.9)    .496 (12.6)   1.920 (48.8)    .837 (21.3)    .250   (6.4)

                10/11    .656 (16.7)   1.650 (41.9)   .906 (23.0)   1.590 (40.4)    .426 (10.8)   2.080 (52.8)    .887 (22.5)    .375   (9.5)
                12/13    .716 (18.2)   1.720 (43.7)   .966 (24.5)   1.660 (42.2)    .426 (10.8)   2.080 (52.8)    .887 (22.5)    .375   (9.5)

                                            1.026 (26.1)   1.690 (42.9)
                14/15    .776 (19.7)   1.750 (44.5)               .436 (11.1)   2.150 (54.6)    .987 (25.1)    .500  (12.7)
                                            1.086 (27.6)   1.790 (45.5)
                16/17    .836 (21.2)   1.850 (47.0)               .576 (14.6)   2.200 (55.9)  1.137 (28.9)       .625  (15.9)
                18/19    .906 (23.0)   1.910 (48.5)               .796 (20.2)   2.230 (56.6)  1.337 (34.0)       .625  (15.9)
                                            1.156 (29.4)   1.850 (47.0)
                                            1.216 (30.9)   1.910 (48.5)
                20/21    .976 (24.8)   1.970 (50.0)               .796 (20.2)   2.230 (56.6)  1.337 (34.0)       .625  (15.9)
                22/23   1.036 (26.3)   2.030 (51.6)               .696 (17.7)   2.380 (60.5)  1.337 (34.0)       .750  (19.1)
                                            1.276 (32.4)   1.970 (50.0)
                24/25   1.096 (27.8)   2.090 (53.1)   1.336 (33.9)   2.030 (51.6)   .696 (17.7)   2.380 (60.5)   1.337 (34.0)       .750  (19.1)
                                TABLE X: CABLE ENTRY                          TABLE II: STANDARD FINISHES
              Dash        T             V            Cable Range               GLENAIR
               No.       Max          Max           Min          Max           SYMBOL   FINISH
                                                                                  B
               04     .780  (19.8)    .957  (24.3)     .125   (3.2)     .312   (7.9)   M  Cadmium Plate, Olive Drab
                                                                                        Electroless Nickel
               06     .780  (19.8)   1.145  (29.1)     .250   (6.4)     .437  (11.1)   NF  Cadmium Plate, Olive Drab
               08     .780  (19.8)   1.332  (33.8)     .312   (7.9)     .562  (14.3)        Over Electroless Nickel
               10     .780  (19.8)   1.332  (33.8)     .350   (8.9)     .625  (15.9)   See Inside Back Cover
               12     .811  (20.6)   1.551  (39.4)     .500  (12.7)     .750  (19.1)   for Additional Finish Options
               16     .905  (23.0)   1.770  (45.0)     .625  (15.9)     .937  (23.8)
               20   1.092  (27.7)   2.113  (53.7)     .875  (22.2)    1.250  (31.8)   1.  When maximum cable entry (page 21) is
               24   1.124  (28.5)   2.363  (60.0)    1.000  (25.4)    1.375  (34.9)   exceeded, Style 2 will be supplied (not avail-
               28   1.399  (35.5)   2.770  (70.4)    1.250  (31.8)    1.625  (41.3)   able in Function C).  Dimensions F, G, H and
               32   1.399  (35.5)   3.020  (76.7)    1.437  (36.5)    1.875  (47.6)   J will not apply.  Please consult factory.
                                                                            2.  Metric dimensions (mm) are indicated in
               parentheses.
             3.  Cable range is defined as the accommodations range for the wire bundle or cable.  Dimensions shown are not
               intended for inspection criteria.
             4.  Consult factory for available sizes of 45° (Symbol F).
             5.  Designate termination symbol T  for 3 ring termination of individual and overall braid.  Designate D for standard
               2 ring termination of individual or overall braid.
             6.  Angular function "C", low-profile split elbow, not available with "S" connector designator.

                                                    TABLE XI: CABLE ENTRY
                     Dash       W            X            Y             Z              Cable Range
                      No.      Max         Max           Max          Max          Min **        Max
                      03*   .437  (11.1)     .760  (19.3)    .843  (21.4)     .630  (16.0)     .156   (4.0)     .250   (6.4)
                      04*   .437  (11.1)     .760  (19.3)    .906  (23.0)     .755  (19.2)     .188   (4.8)     .312   (7.9)
                      06*   .500  (12.7)     .760  (19.3)   1.093  (27.8)     .942  (23.9)     .281   (7.1)     .438  (11.1)
                      08    .563  (14.3)     .760  (19.3)   1.187  (30.1)    1.067  (27.1)     .344   (8.7)     .562  (14.3)
                      10    .563  (14.3)     .760  (19.3)   1.281  (32.5)    1.192  (30.3)     .375   (9.5)     .625  (15.9)
                      12    .563  (14.3)     .760  (19.3)   1.500  (38.1)    1.380  (35.1)     .438  (11.1)     .750  (19.1)
                      16    .656  (16.7)   1.073  (27.3)   1.719  (43.7)      1.535  (39.0)     .562  (14.3)     .938  (23.8)
                      20    .656  (16.7)   1.323  (33.6)   2.062  (52.4)      1.848  (46.9)     .750  (19.1)    1.250  (31.8)
                      24    .656  (16.7)   1.323  (33.6)   2.312  (58.7)      2.255  (57.3)     .781  (19.8)    1.375  (34.9)
                      28   1.188  (30.2)    1.572  (39.9)   2.719  (69.1)    2.505  (63.6)     .969  (24.6)    1.625  (41.3)
                      32*  1.187  (30.1)    1.572  (39.9)   2.969  (75.4)    2.755  (70.0)    1.125  (28.6)    1.875  (47.6)
                      40*  1.125  (28.6)   1.572  (39.9)   3.531  (89.7)    3.255  (82.7)    1.469  (37.3)    2.375  (60.3)
                       *  Not available in Style M clamp.                                                    ** Not Applicable Style D


             © 2005 Glenair, Inc.                        CAGE Code 06324         Rev. 06.01.15         Printed in U.S.A.
              GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
             www.glenair.com                        Series 38 -  Page 103                 E-Mail: sales@glenair.com
