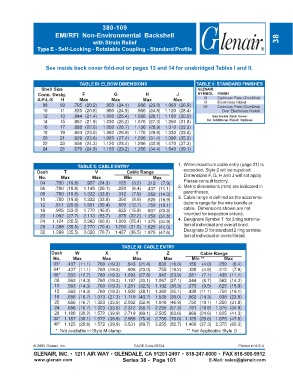

Page 237 - Circular Connector Backshells and Accessories
P. 237

380-109
                        EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                 Type E - Self-Locking - Rotatable Coupling - Standard Profile



                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.


                                  TABLE III: ELBOW DIMENSIONS                      TABLE II: STANDARD FINISHES
                  Shell Size                                                        GLENAIR
                 Conn. Desig.      F             G            H            J        SYMBOL  FINISH
                 A-F-L-S  H       Max           Max          Max         Max          B     Cadmium Plate, Olive Drab
                                                                                      M     Electroless Nickel
                   08     09    .795 (20.2)  .950 (24.1)  .906 (23.0) 1.060 (26.9)    NF    Cadmium Plate, Olive Drab
                   10     11    .820 (20.8)  .980 (24.9)  .966 (24.5) 1.120 (28.4)              Over Electroless Nickel
                   12     13    .844 (21.4)  1.000 (25.4)  1.026 (26.1) 1.180 (30.0)      See Inside Back Cover
                                                                                        for Additional Finish Options
                   14     15    .861 (21.9)  1.030 (26.2)  1.076 (27.3) 1.250 (31.8)
                   16     17    .888 (22.6)  1.050 (26.7)  1.136 (28.9) 1.310 (33.3)
                   18     19    .904 (23.0)  1.060 (26.9)  1.176 (29.9) 1.330 (33.8)
                   20     21    .929 (23.6)  1.080 (27.4)  1.236 (31.4) 1.390 (35.3)
                   22     23    .956 (24.3)  1.120 (28.4)  1.296 (32.9) 1.470 (37.3)
                   24     25    .979 (24.9)  1.150 (29.2)  1.356 (34.4) 1.540 (39.1)



                                  TABLE X: CABLE ENTRY                     1. When maximum cable entry (page 21) is
                 Dash       T            V            Cable Range             exceeded, Style 2 will be supplied.
                 No.       Max          Max          Min         Max          Dimensions F, G, H and J will not apply.
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)    Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated in
                                                                              parentheses.
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accommo-
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)   dations range for the wire bundle or
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)   cable.  Dimensions shown are not
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)   intended for inspection criteria.
                                                                           4. Designate Symbol T  for 3 ring termina-
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                                                                              tion of individual and overall braid.
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)  Designate D for standard 2 ring termina-
                                                                              tion of individual or overall braid.
                                                    TABLE XI: CABLE ENTRY
                      Dash      W            X            Y            Z             Cable Range
                       No.      Max         Max          Max         Max         Min **        Max
                       03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                       04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                       06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                       32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                       40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                        *  Not available in Style M clamp.                                                    ** Not Applicable Style D
