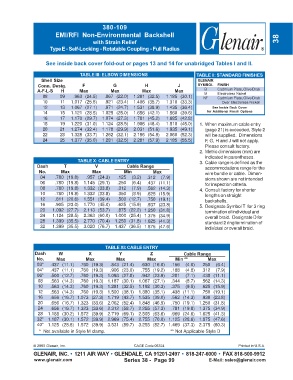

Page 235 - Circular Connector Backshells and Accessories

380-109
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type E - Self-Locking - Rotatable Coupling - Full Radius

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: ELBOW DIMENSIONS TABLE II: STANDARD FINISHES
Shell Size GLENAIR
Conn. Desig. F G H J SYMBOL FINISH
A-F-L-S H Max Max Max Max B Cadmium Plate, Olive Drab
M
08 09 .963 (24.5) .867 (22.0) 1.281 (32.5) 1.185 (30.1) NF Electroless Nickel
Cadmium Plate, Olive Drab
10 11 1.017 (25.8) .921 (23.4) 1.406 (35.7) 1.310 (33.3) Over Electroless Nickel
12 13 1.067 (27.1) .971 (24.7) 1.531 (38.9) 1.435 (36.4) See Inside Back Cover
14 15 1.121 (28.5) 1.025 (26.0) 1.656 (42.1) 1.560 (39.6) for Additional Finish Options
16 17 1.170 (29.7) 1.074 (27.3) 1.781 (45.2) 1.685 (42.8)
18 19 1.220 (31.0) 1.124 (28.5) 1.906 (48.4) 1.810 (46.0) 1. When maximum cable entry
20 21 1.274 (32.4) 1.178 (29.9) 2.031 (51.6) 1.935 (49.1) (page 21) is exceeded, Style 2
22 23 1.328 (33.7) 1.262 (32.1) 2.156 (54.8) 2.060 (52.3) will be supplied. Dimensions
24 25 1.377 (35.0) 1.281 (32.5) 2.281 (57.9) 2.185 (55.5) F, G, H and J will not apply.
Please consult factory.
2. Metric dimensions (mm) are
indicated in parentheses.
TABLE X: CABLE ENTRY 3. Cable range is defined as the
Dash T V Cable Range accommodations range for the
No. Max Max Min Max
wire bundle or cable. Dimen-
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) sions shown are not intended
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1) for inspection criteria.
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) 4. Consult factory for shorter
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) lengths on straight
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1)
backshells.
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) 5. Designate Symbol T for 3 ring
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) termination of individual and
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9)
overall braid. Designate D for
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) standard 2 ring termination of
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6)
individual or overall braid.

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 99 E-Mail: sales@glenair.com
