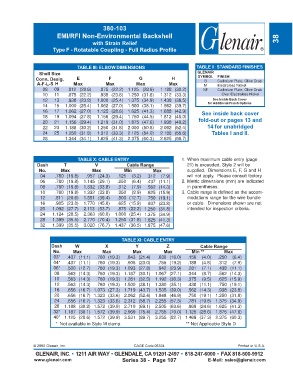

380-103
                         EMI/RFI Non-Environmental Backshell                                                         38
                                        with Strain Relief
                       Type F - Rotatable Coupling - Full Radius Profile



                                 TABLE III: ELBOW DIMENSIONS                       TABLE II: STANDARD FINISHES
                 Shell Size                                                         GLENAIR
                Conn. Desig.     E            F            G             H          SYMBOL  FINISH
                                                                                            Cadmium Plate, Olive Drab
                                                                                      B
                A-F-L-S H       Max          Max          Max           Max           M     Electroless Nickel
                   08   09   .812 (20.6)   .875 (22.2)  1.125 (28.6)  1.188 (30.2)    NF    Cadmium Plate, Olive Drab
                   10   11   .875 (22.2)   .938 (23.8)  1.250 (31.8)  1.312 (33.3)              Over Electroless Nickel
                   12   13   .938 (23.8)  1.000 (25.4)  1.375 (34.9)  1.438 (36.5)        See Inside Back Cover
                                                                                        for Additional Finish Options
                   14   15  1.000 (25.4)  1.062 (27.0)  1.500 (38.1)  1.562 (39.7)
                   16   17  1.062 (27.0)  1.125 (28.6)  1.625 (41.3)  1.688 (42.9)   See inside back cover
                   18   19  1.094 (27.8)  1.156 (29.4)  1.750 (44.5)  1.812 (46.0)  fold-out or pages 13 and
                   20   21  1.156 (29.4)  1.219 (31.0)  1.875 (47.6)  1.938 (49.2)
                   22   23  1.188 (30.2)  1.250 (31.8)  2.000 (50.8)  2.062 (52.4)      14 for unabridged
                   24   25  1.250 (31.8)  1.312 (33.3)  2.125 (54.0)  2.188 (55.6)       Tables I and II.
                   28       1.344 (34.1)  1.625 (41.3)  2.375 (60.3)  2.625 (66.7)



                                  TABLE X: CABLE ENTRY                       1. When maximum cable entry (page
                 Dash       T            V            Cable Range              21) is exceeded, Style 2 will be
                 No.       Max          Max          Min         Max           supplied.  Dimensions E, F, G and H
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)     will not apply.  Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)    in parentheses.
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accom-
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)    modations range for the wire bundle
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)    or cable.  Dimensions shown are not
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)    intended for inspection criteria.
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)


                                                    TABLE XI: CABLE ENTRY
                      Dash      W            X            Y            Z             Cable Range
                       No.      Max         Max          Max         Max         Min **        Max
                       03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                       04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                       06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                       32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                       40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                        *  Not available in Style M clamp.                                                    ** Not Applicable Style D




               © 2005 Glenair, Inc.                      CAGE Code 06324                            Printed in U.S.A.
                GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                      Series 38 -  Page 107               E-Mail: sales@glenair.com
