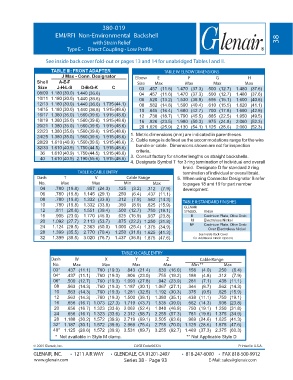

Page 229 - Circular Connector Backshells and Accessories

380-019
EMI/RFI Non-Environmental Backshell
with Strain Relief 38
Type E - Direct Coupling - Low Prole

See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.

TABLE III: FRONT ADAPTER TABLE IV: ELBOW DIMENSIONS
J Max - Conn. Designator Elbow E F G H
Shell A-E-F Size Max Max Max Max
Size J-H-L-S D-B-G-K C 03 .457 (11.6) 1.470 (37.3) .500 (12.7) 1.480 (37.6)
08/09 1.180 (30.0) 1.440 (36.6) 04 .457 (11.6) 1.470 (37.3) .500 (12.7) 1.480 (37.6)
10/11 1.180 (30.0) 1.440 (36.6) 06 .520 (13.2) 1.530 (38.9) .595 (15.1) 1.600 (40.6)
12/13 1.180 (30.0) 1.440 (36.6) 1.735 (44.1) 08 .582 (14.8) 1.590 (40.4) .610 (15.5) 1.620 (41.1)
14/15 1.180 (30.0) 1.440 (36.6) 1.915 (48.6) 10 .645 (16.4) 1.680 (42.7) .700 (17.8) 1.690 (42.9)
16/17 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 12 .738 (18.7) 1.790 (45.5) .885 (22.5) 1.950 (49.5)
18/19 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 16 .926 (23.5) 1.980 (50.3) .975 (24.8) 2.060 (52.3)
20/21 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 20 1.020 (25.9) 2.130 (54.1) 1.125 (28.6) 2.060 (52.3)
22/23 1.380 (35.0) 1.560 (39.6) 1.915 (48.6)
24/25 1.380 (35.0) 1.560 (39.6) 1.915 (48.6) 1. Metric dimensions (mm) are indicated in parentheses.
28/29 1.610 (40.9) 1.560 (39.6) 1.915 (48.6) 2. Cable range is defined as the accommodations range for the wire
32/33 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) bundle or cable. Dimensions shown are not for inspection
36 1.610 (40.9) 1.750 (44.5) 1.915 (48.6) criteria.
40 1.610 (40.9) 2.190 (55.6) 1.915 (48.6) 3. Consult factory for shorter lengths on straight backshells.
4. Designate Symbol T for 3 ring termination of individual and overall
braid. Designate D for standard 2 ring
TABLE X: CABLE ENTRY termination of individual or overall braid.
Dash T V Cable Range 5. When using Connector Designator B refer
No. Max Max Min Max to pages 18 and 19 for part number
04 .780 (19.8) .957 (24.3) .125 (3.2) .312 (7.9) development.
06 .780 (19.8) 1.145 (29.1) .250 (6.4) .437 (11.1)
08 .780 (19.8) 1.332 (33.8) .312 (7.9) .562 (14.3) TABLE II: STANDARD FINISHES
10 .780 (19.8) 1.332 (33.8) .350 (8.9) .625 (15.9) GLENAIR
12 .811 (20.6) 1.551 (39.4) .500 (12.7) .750 (19.1) SYMBOL FINISH
16 .905 (23.0) 1.770 (45.0) .625 (15.9) .937 (23.8) B Cadmium Plate, Olive Drab
20 1.092 (27.7) 2.113 (53.7) .875 (22.2) 1.250 (31.8) M Electroless Nickel
24 1.124 (28.5) 2.363 (60.0) 1.000 (25.4) 1.375 (34.9) NF Cadmium Plate, Olive Drab
Over Electroless Nickel
28 1.399 (35.5) 2.770 (70.4) 1.250 (31.8) 1.625 (41.3) See Inside Back Cover
32 1.399 (35.5) 3.020 (76.7) 1.437 (36.5) 1.875 (47.6) for Additional Finish Options

TABLE XI: CABLE ENTRY
Dash W X Y Z Cable Range
No. Max Max Max Max Min ** Max
03* .437 (11.1) .760 (19.3) .843 (21.4) .630 (16.0) .156 (4.0) .250 (6.4)
04* .437 (11.1) .760 (19.3) .906 (23.0) .755 (19.2) .188 (4.8) .312 (7.9)
06* .500 (12.7) .760 (19.3) 1.093 (27.8) .942 (23.9) .281 (7.1) .438 (11.1)
08 .563 (14.3) .760 (19.3) 1.187 (30.1) 1.067 (27.1) .344 (8.7) .562 (14.3)
10 .563 (14.3) .760 (19.3) 1.281 (32.5) 1.192 (30.3) .375 (9.5) .625 (15.9)
12 .563 (14.3) .760 (19.3) 1.500 (38.1) 1.380 (35.1) .438 (11.1) .750 (19.1)
16 .656 (16.7) 1.073 (27.3) 1.719 (43.7) 1.535 (39.0) .562 (14.3) .938 (23.8)
20 .656 (16.7) 1.323 (33.6) 2.062 (52.4) 1.848 (46.9) .750 (19.1) 1.250 (31.8)
24 .656 (16.7) 1.323 (33.6) 2.312 (58.7) 2.255 (57.3) .781 (19.8) 1.375 (34.9)
28 1.188 (30.2) 1.572 (39.9) 2.719 (69.1) 2.505 (63.6) .969 (24.6) 1.625 (41.3)
32* 1.187 (30.1) 1.572 (39.9) 2.969 (75.4) 2.755 (70.0) 1.125 (28.6) 1.875 (47.6)
40* 1.125 (28.6) 1.572 (39.9) 3.531 (89.7) 3.255 (82.7) 1.469 (37.3) 2.375 (60.3)
* Not available in Style M clamp. ** Not Applicable Style D

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 93 E-Mail: sales@glenair.com
