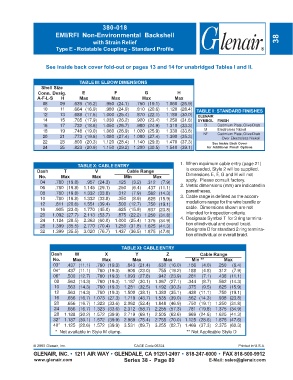

Page 225 - Circular Connector Backshells and Accessories
P. 225

380-018
                        EMI/RFI Non-Environmental Backshell
                                        with Strain Relief                                                           38
                        Type E - Rotatable Coupling - Standard Profile



                    See inside back cover fold-out or pages 13 and 14 for unabridged Tables I and II.


                                  TABLE III: ELBOW DIMENSIONS
                  Shell Size
                 Conn. Desig.      E             F           G             H
                 A-F-L-S  H       Max           Max         Max           Max
                   08     09    .639 (16.2)  .950 (24.1)  .750 (19.1)  1.060 (26.9)
                   10     11    .664 (16.9)  .980 (24.9)  .810 (20.6)  1.120 (28.4)  TABLE II: STANDARD FINISHES
                   12     13    .688 (17.5)  1.000 (25.4)  .870 (22.1)  1.180 (30.0)  GLENAIR
                   14     15    .705 (17.9)  1.030 (26.2)  .920 (23.4)  1.250 (31.8)  SYMBOL  FINISH
                   16     17    .732 (18.6)  1.050 (26.7)  .980 (24.9)  1.310 (33.3)  B     Cadmium Plate, Olive Drab
                   18     19    .748 (19.0)  1.060 (26.9)  1.020 (25.9)  1.330 (33.8)  M    Electroless Nickel
                                                                                      NF    Cadmium Plate, Olive Drab
                   20     21    .773 (19.6)  1.080 (27.4)  1.080 (27.4)  1.390 (35.3)           Over Electroless Nickel
                   22     23    .800 (20.3)  1.120 (28.4)  1.140 (29.0)  1.470 (37.3)     See Inside Back Cover
                   24     25    .823 (20.9)  1.150 (29.2)  1.200 (30.5)  1.540 (39.1)   for Additional Finish Options


                                  TABLE X: CABLE ENTRY                      1. When maximum cable entry (page 21)
                 Dash       T            V            Cable Range              is exceeded, Style 2 will be supplied.
                 No.       Max          Max          Min         Max           Dimensions E, F, G and H will not
                  04    .780 (19.8)  .957 (24.3)  .125  (3.2)  .312  (7.9)     apply.  Please consult factory.
                  06    .780 (19.8)  1.145 (29.1)  .250  (6.4)  .437 (11.1)  2. Metric dimensions (mm) are indicated in
                  08    .780 (19.8)  1.332 (33.8)  .312  (7.9)  .562 (14.3)    parentheses.
                  10    .780 (19.8)  1.332 (33.8)  .350  (8.9)  .625 (15.9)  3. Cable range is defined as the accom-
                                                                               modations range for the wire bundle or
                  12    .811 (20.6)  1.551 (39.4)  .500 (12.7)  .750 (19.1)
                  16    .905 (23.0)  1.770 (45.0)  .625 (15.9)  .937 (23.8)    cable.  Dimensions shown are not
                  20   1.092 (27.7)  2.113 (53.7)  .875 (22.2) 1.250 (31.8)    intended for inspection criteria.
                                                                            4. Designate Symbol T  for 3 ring termina-
                  24   1.124 (28.5)  2.363 (60.0)  1.000 (25.4) 1.375 (34.9)
                  28   1.399 (35.5)  2.770 (70.4)  1.250 (31.8) 1.625 (41.3)   tion of individual and overall braid.
                                                                               Designate D for standard 2 ring termina-
                  32   1.399 (35.5)  3.020 (76.7)  1.437 (36.5) 1.875 (47.6)
                                                                               tion of individual or overall braid.
                                                    TABLE XI: CABLE ENTRY
                      Dash      W            X            Y            Z             Cable Range
                       No.     Max          Max         Max          Max         Min **        Max
                       03*   .437 (11.1)  .760 (19.3)  .843 (21.4)  .630 (16.0)  .156  (4.0)  .250  (6.4)
                       04*   .437 (11.1)  .760 (19.3)  .906 (23.0)  .755 (19.2)  .188  (4.8)  .312  (7.9)
                       06*   .500 (12.7)  .760 (19.3) 1.093 (27.8)  .942 (23.9)  .281  (7.1)  .438 (11.1)
                        08   .563 (14.3)  .760 (19.3) 1.187 (30.1)  1.067 (27.1)  .344  (8.7)  .562 (14.3)
                        10   .563 (14.3)  .760 (19.3) 1.281 (32.5)  1.192 (30.3)  .375  (9.5)  .625 (15.9)
                        12   .563 (14.3)  .760 (19.3) 1.500 (38.1)  1.380 (35.1)  .438 (11.1)  .750 (19.1)
                        16   .656 (16.7)  1.073 (27.3) 1.719 (43.7)  1.535 (39.0)  .562 (14.3)  .938 (23.8)
                        20   .656 (16.7)  1.323 (33.6) 2.062 (52.4)  1.848 (46.9)  .750 (19.1)  1.250 (31.8)
                        24   .656 (16.7)  1.323 (33.6) 2.312 (58.7)  2.255 (57.3)  .781 (19.8)  1.375 (34.9)
                        28  1.188 (30.2)  1.572 (39.9) 2.719 (69.1)  2.505 (63.6)  .969 (24.6)  1.625 (41.3)
                       32* 1.187 (30.1)  1.572 (39.9) 2.969 (75.4)  2.755 (70.0) 1.125 (28.6)  1.875 (47.6)
                       40* 1.125 (28.6)  1.572 (39.9) 3.531 (89.7)  3.255 (82.7) 1.469 (37.3)  2.375 (60.3)
                        *  Not available in Style M clamp.                                                    ** Not Applicable Style D


               © 2005 Glenair, Inc.                      CAGE Code 06324                             Printed in U.S.A.
               GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
               www.glenair.com                       Series 38 -  Page 89               E-Mail: sales@glenair.com
