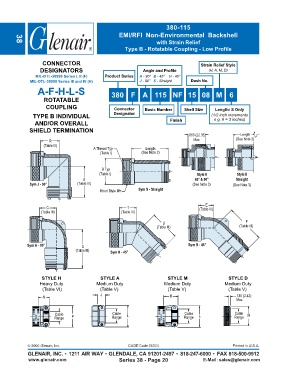

Page 156 - Circular Connector Backshells and Accessories

380-115
EMI/RFI Non-Environmental Backshell
with Strain Relief
38
Type B - Rotatable Coupling - Low Profile

CONNECTOR Strain Relief Style
DESIGNATORS (H, A, M, D)
MIL-DTL-38999 Series I, II (F) Product Series A - 90° B - 45° H - 45°
MIL-DTL-38999 Series III and IV (H) J - 90° S - Straight Dash No.
A-F-H-L-S 380 F A 115 NF 15 08 M 6

ROTATABLE
COUPLING Connector Basic Number Shell Size Length: S Only
TYPE B INDIVIDUAL Designator (1/2 inch increments
e.g. 6 = 3 inches)
AND/OR OVERALL Finish
SHIELD TERMINATION
.880 (22.35) Length
R Max (See Note 2)
(Table III)
A Thread Typ Length
(Table I) (See Note 2)

B Typ
(Table I) Style II Style II
S 45° & 90° Straight
Sym J - 90° (Table III) (See Note 3) (See Note 3)
Knurl Style Mfr Sym S - Straight

E
C T (Table III)
(Table III) (Table III)
U F
(Table III) (Table III)

Sym A - 90 O D Sym B - 45 O
(Table III) Sym H - 45°

STYLE H STYLE A STYLE M STYLE D
Heavy Duty Medium Duty Medium Duty Medium Duty
(Table VI) (Table V) (Table V) (Table V)

N J K .135 (3.43)
Max

Cable Cable L Cable Cable M
Glenair Range P Range Glenair Range L Range

© 2005 Glenair, Inc. CAGE Code 06324 Printed in U.S.A.
GLENAIR, INC. • 1211 AIR WAY • GLENDALE, CA 91201-2497 • 818-247-6000 • FAX 818-500-9912
www.glenair.com Series 38 - Page 20 E-Mail: sales@glenair.com
